Valve control unit PICO Toµch®

laboratorymedicalfor medical devices

Overview

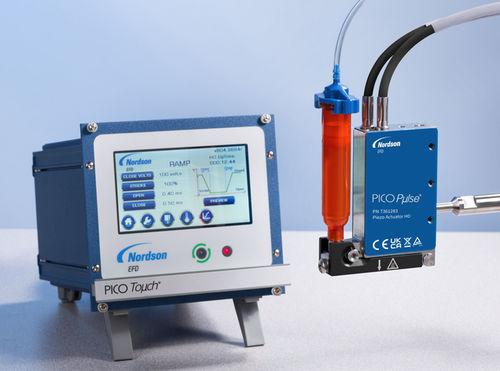

The PICO Toµch® touchscreen controller provides centralized control and fine adjustment of PICO Pµlse® jet and contact dispense valves, simplifying setup and repeatable micro-dispensing in production environments.

Key capabilities

• Fine-tune dispensing using ramp open/close parameters and stroke control via the Wave Profile screen.
• Adjust pulse time with 0.01 ms resolution for precise deposit sizing.
• Set and maintain valve operating temperature from the controller.
• Valve cycle rates: up to 1000 Hz continuous; up to 1500 Hz burst under approved conditions.
• Improved slope control reduces turbulence and air entrapment to minimize deposit variation.
• Support for both PICO Pµlse jet valves and PICO Pµlse contact dispense valves.

User interface and operation

• Intuitive touchscreen interface for fast setup and recipe selection.
• Display resolution: 480 x 272 for clear parameter visualization.
• More than 12 display language options.
• Programmable lockout to prevent unintended parameter changes.

Part numbers
Part #: 7361217 | Description: PICO Toµch Controller | For use with: PICO Pµlse Valves

Technical specifications

• Touchscreen resolution: 480 x 272.
• Language support: more than 12 display languages.
• Pulse time adjustment resolution: 0.01 ms increments.
• Valve cycle rate: up to 1000 Hz continuous; up to 1500 Hz burst (with approved conditional settings).
• Wave Profile: ramp open/close and stroke control for slope tuning.
• Settable valve operating temperature.
• Programmable lockout to secure settings.
• Compatibility: PICO Pµlse jet valves and PICO Pµlse contact dispense valves.
• Manufacturer / Brand: Nordson EFD.
