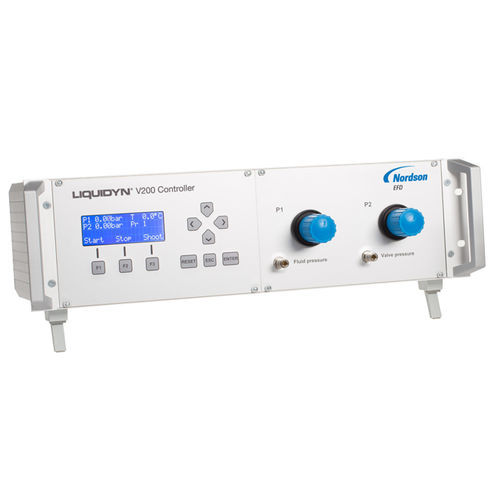

Pressure controller Liquidyn V200

Overview
By controlling dispensing parameters, the Liquidyn V200 valve controller optimizes valve performance. Two precision pressure regulators and a digital display allow easy adjustment to obtain the required deposit. Designed for integration with benchtop and automated dispensing systems, the V200 operates at low voltage for safe use.

Features

• Programmable dispensing parameters — up to 4 stored programs
• Continuous shot operation: up to 150 Hz (P-Dot) and up to 280 Hz (P-Jet)
• Digital display of setpoint and actual pressure and temperature
• Setpoint counter to set and display number of shots deposited
• Two precision pressure regulators for fine fluid control

Compatible valves

• Liquidyn P-Jet series jet valves
• Liquidyn P-Dot series jet valves

Controllers & control systems — summary
The Liquidyn V200 is intended to be paired with dispense valves and automated dispensing systems to maximize speed, repeatability and process efficiency.

Part numbers
Liquidyn V200 valve controllers
Part # | Description | For use with
7825168 | V200 Controller | P-Jet CT, P-Jet AN, P-Dot CT, P-Jet SolderPlus valves

Technical specifications

• Model: Liquidyn® V200
• Programmable programs: up to 4
• Shot frequency: up to 150 Hz (P-Dot); up to 280 Hz (P-Jet)
• Pressure control: two precision pressure regulators
• Displays: digital setpoint and actual pressure and temperature
• Shot counting: setpoint counter for shots deposited
• Power: low-voltage operation for benchtop and automated integration
• Compatible valves: Liquidyn P-Jet and P-Dot series
• Reference part number: 7825168
