Assembly fluid dispenser Liquidyn P-Dot

grease

Overview

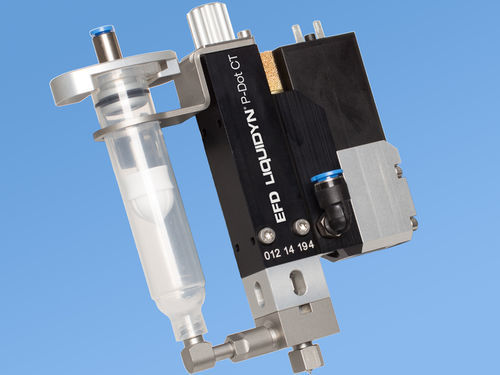

Designed for medium‑viscosity to highly viscous or thick fluids, the pneumatically actuated Liquidyn® P‑Dot jetting valve delivers precise, repeatable dots, beads and lines. Extremely short triggering intervals (< 1 ms) enable accurate, low‑volume deposition (3 nL–200 nL) at frequencies up to 150 Hz. Wetted parts (nozzles, tappets, fluid inlet fittings) are easily exchangeable and separated from the actuator for fast maintenance.

Key features

• Deposit volume range: approximately 3 nL to 200 nL.
• Dispense frequencies up to 150 Hz; triggering intervals less than 1 ms.
• Suitable for medium‑viscosity to highly viscous/thick fluids (epoxies, greases, oils, anaerobic materials, etc.).
• Pneumatic actuation with electro‑pneumatic low‑voltage pulse control (24 VDC).
• Normally closed (NC) when idle to prevent undesired dispensing.
• Easily exchangeable wetted components for quick service and customization.
• Control options: Liquidyn V200 controller or customer‑supplied PLC.
• Engineered for industrial production and low total cost of ownership.

System options & accessories

• Complete system: Liquidyn V200 jet valve controller and fluid reservoir (or PLC control).
• Related product: Liquidyn P‑Jet (for lower‑viscosity fluids at higher frequencies).
• Accessories: laser light barrier, jet cleaning station, fluid pressure booster, digital‑gauge fluid reservoirs.

Resources & documents

• Datasheet and operating manual available.
• Instructional videos: maintenance (tappet change, cleaning, reassembly) and dispense demonstrations.

Part numbers
Part # | Description | Specification
7825002 | Liquidyn P‑Dot CT Actuator | Suitable for medium‑ to high‑viscosity fluids; cycle rates up to 150 Hz.

Technical specifications

• Deposit volume: approx. 3 nL to 200 nL.
• Maximum dispensing frequency: up to 150 Hz (application dependent).
• Triggering interval: less than 1 ms.
• Actuation: pneumatic (electro‑pneumatic), valve driven by low‑voltage pulse (24 VDC).
• Valve state: normally closed (NC) when idle.
• Fluid compatibility: medium‑viscosity to highly viscous/thick fluids.
• Serviceability: wetted parts separated from actuator; exchangeable nozzles, tappets, inlet fittings.
• Control: Liquidyn V200 or customer PLC.
• Typical applications: dot, bead and line jetting for automotive, electronics and industrial assembly.
