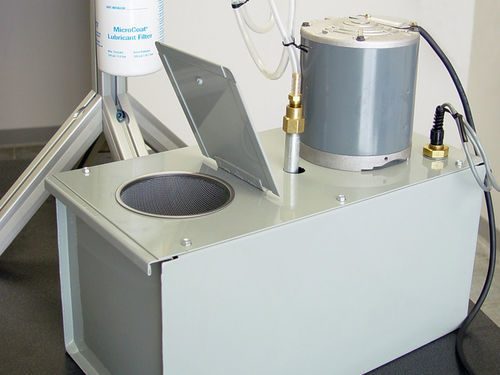

Reservoir MicroCoat® Six Gallon Reservoir System

Overview
The MC600M reservoir system by MicroCoat is engineered for continuous lubricant supply to fin mills, tube mills and metal stamping operations where frequent shutdowns for refilling standard reservoirs are impractical. The unit supports extended production runs and integrates with the MicroCoat MC600 lubrication system.

Available Options

• MC600M six gallon reservoir system
• 3.8 liter (1 gallon) acrylic see-through tank (MC685M)
• 7.5 liter (2 gallon) acrylic see-through tank (MC686M)
• Fluid regulator kit for step-down fluid pressure control
• Flow guard for low and high flow alerts, available in different voltages

Features & Benefits

• Six gallon capacity tank for extended lubricant supply
• Provides a consistent fluid feed to the MicroCoat MC600 lubrication system
• Low fluid level detection switch for maintenance alerts
• Removable filter screen for easy cleaning
• Inline lubrication filter to protect dispensing components
• Includes fluid regulator for pressure control; optional flow guard for flow monitoring and alerts

Part Numbers
MicroCoat Six Gallon Reservoir
7023843 | MC685M | 3.8 liter (1 gal) acrylic see-through tank.
7023846 | MC686M | 7.5 liter (2 gal) acrylic see-through tank.

Resources / Downloads

• MC600M Operating Manual (available)
• Additional resources: product literature and videos available via the EFD resource center

Specifications

• Capacity: Six gallon reservoir (≈22.7 L)
• Intended applications: fin mills, tube mills, metal stamping operations requiring continuous lubrication supply
• Compatibility: designed to feed the MicroCoat MC600 lubrication system
• Includes low fluid level detection switch
• Removable filter screen for maintenance
• Inline lubrication filter to protect the dispense system
• Includes fluid regulator for pressure control; optional flow guard for low/high flow alerts (various voltages)
• Optional smaller tanks: MC685M (3.8 L / 1 gal), MC686M (7.5 L / 2 gal)
