Product name
NOXtec 3000

Tagline
The inhaled nitric oxide monitoring system.

Overview

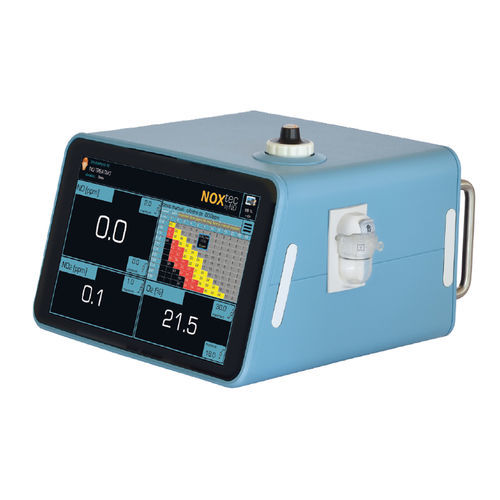

NOXtec 3000 is a medical device designed to continuously monitor the concentration of inhaled nitric oxide (NO) delivered to a patient. By continuously sampling the NO–O2 flow to the patient, the system provides real‑time NO measurements and verifies compliance with predefined clinical thresholds.

Safety & monitoring features
NOXtec 3000 detects trace amounts of nitrogen dioxide (NO2) in the gas mixture and issues alarms if NO2 exceeds preset safety limits. The device supports automatic calibration of NO, NO2 and O2 sensors, including during dosing operations, reducing the need for manual calibration and lowering routine maintenance costs.

Integrated room measurement
The unit integrates ambient monitoring of NO, NO2 and O2 in the treatment room while dosing, enabling environmental safety checks and helping ensure staff and facility compliance.

DOSE SYSTEM / MONITOR SYSTEM
DOSE SYSTEM / MONITOR SYSTEM
Real time mode
Automatic mode
Semiautomatic mode
manual mode
Cylinder exchange
Automatic venting
Automatic calibration
Room measurement

Additional notes
Continuous sampling of the NO–O2 flow ensures accurate concentration monitoring and threshold verification throughout therapy sessions.

Technical specifications

• Device type: Inhaled nitric oxide monitor
• Monitored gases: Nitric oxide (NO), nitrogen dioxide (NO2), oxygen (O2)
• Sampling: Continuous sampling of the NO–O2 mixture delivered to the patient
• Safety: NO2 trace monitoring with threshold alarms
• Calibration: Automatic calibration of NO, NO2 and O2 sensors, operable during dosing
• Room monitoring: Integrated ambient measurement for NO, NO2 and O2 while dosing
• Dose system modes: Real-time, Automatic, Semiautomatic, Manual
• Operational features: Cylinder exchange, Automatic venting, Automatic calibration, Room measurement
