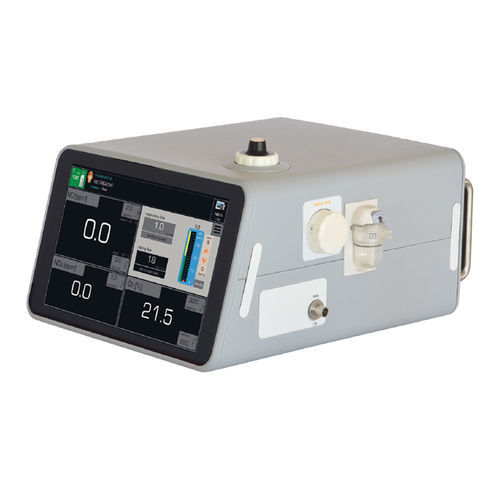

Dosing monitoring device NOXtec 2000

NO2nitric oxideO2

Description
NOXtec 2000 is a semi-automatic inhaled nitric oxide (NO) delivery and monitoring device. NO is a gaseous vasodilator primarily used to treat pulmonary arterial hypertension; NOXtec 2000 delivers a dose that remains stable throughout the therapy and is intended for administration of NO mixed with medical oxygen.

Dosing and control
NOXtec 2000 calculates semi-automatically the dosing flow required to reach the target PPM concentration using a disposable respiratory flow sensor installed in the patient breathing circuit. Alternatively, the dosing flow can be set manually. By continuously sampling the NO‑O2 mixture delivered to the patient, the unit monitors the NO concentration received and verifies compliance with preset threshold values.

Monitoring and safety
The system also detects and monitors traces of nitrogen dioxide (NO2), a highly toxic gas, to prevent exceeding predefined safety thresholds. NOXtec 2000 can automatically calibrate NO, NO2 and O2 sensors, even during dosing, helping to reduce operational costs. The device is ready for use without requiring a calibration test at startup, enabling rapid commissioning.

Additional safety features
The device incorporates automatic purge at treatment start and during cylinder changes to minimize NO2 administration. It provides a purge outlet to collect and channel residual gas. Emergency manual dosing is available even when the device is switched off.

Cart and accessories

• Cart suitable for 2 NO‑N2 mixture cylinders of 10 or 20 litres.
• Automatic cylinder exchange system to increase treatment autonomy and optimise gas consumption.
• Single‑patient consumable kit compatible with any ventilator.
• Cart easy to move thanks to 4 swivel castors.

Table: DOSING SYSTEM / MONITORING SYSTEM
Real-time mode: No
Automatic mode: No
Semi-automatic mode: Yes
Manual mode: Yes
Cylinder replacement: No
Automatic purge: No
Automatic calibration: Yes
Environmental monitoring: Yes

Features / technical specifications

• Semi-automatic device for delivery and monitoring of inhaled nitric oxide.
• Semi-automatic dosing calculated via disposable respiratory flow sensor; manual flow adjustment option available.
• Continuous sampling of the NO‑O2 mixture to monitor the administered concentration.
• Control and monitoring of NO2 traces to ensure patient safety.
• Automatic calibration of NO, NO2 and O2 sensors, even during dosing.
• Ready for use without a calibration test at startup (rapid commissioning).
• Automatic purge at start and during cylinder changes; purge outlet for residual gas management.
• Emergency manual dosing possible even when the device is switched off.
• Accessories: cart for 2 cylinders (10 or 20 L), automatic cylinder exchange system, single‑patient consumable kit, cart with 4 swivel castors.
