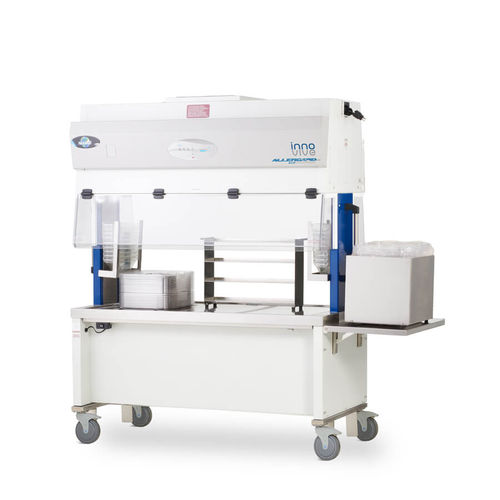

Exhaust fume hood NU-620R
transferlaboratorycage changing

exhaust fume hood
exhaust fume hood
exhaust fume hood
exhaust fume hood
exhaust fume hood
exhaust fume hood
exhaust fume hood
Add to favorites
Compare this product


Characteristics

Function
exhaust, transfer
Applications
laboratory, cage changing
Configuration
on casters
Filter type
HEPA
Air flow type
downflow
Depth

780 mm
(30.71 in)

Height

1,983 mm, 2,289 mm
(78.07 in, 90.12 in)

Description

The NU-620R uses independent supply and exhaust modules with separate impellers and HEPA filters to create a “Push-Pull” airflow system for a work area specially configured for Innovive® rat cages. Overview The NU-620R uses an impeller and HEPA filter in both the supply module at the top of the unit as well as in the exhaust module at the bottom to turn the work zone in between into a vertical “piston of air.” The transfer station’s supply impeller at the top of the “piston” draws air down through a prefilter and propels it past a supply HEPA filter and towards the work zone to create a clean air environment. From there, the exhaust impeller at the bottom of the “piston” pulls the downflow air through the slots in the work surface to provide allergen containment. It continues to suck all the air past an exhaust pre-filter before pushing it out an exhaust HEPA filter at the bottom of the transfer station. This “push-pull” airflow passes through a work surface divided by air grills into clean and dirty areas and a work zone configured with the deep wells and feeder holders that the Innovive™ cage changing process requires. Configuration Deep Well(s) - 1 Deepwell Feeder Holder(s) - Standard on Right and Left Side Wall Folding Shelf Dimensions (W x D) - Standard, 18-inch (457mm) x 30-inch (762mm) Magnifying Glass in Window - Standard Motorized Base Stand - Included Outlet(s) - On Right Side

Catalogs

No catalogs are available for this product.

See all of NuAire Laboratory Equipment‘s catalogs
