Oxygen Therapy Treatment for Multiple Casualty Incidents

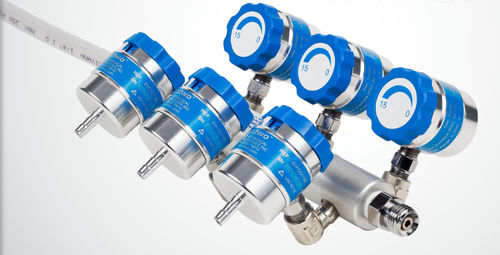

When multiple casualty incidents occur, EMS providers often find their resources stretched in terms of equipment as well as personnel. For those incidents where a number of patients require oxygen therapy to be provided simultaneously, the O-Two Multi Patient Unit meets the challenge.
With six adjustable therapy flow controls and the ability to operate an automatic resuscitator or demand valve resuscitator from the 9/16 DISS self sealing outlet on the end of the unit, the flexibility offered by the compact O-Two Multi Patient Unit is second to none!
The O-Two Multi-Patient Unit attaches to any oxygen regulator having a 9/16 DISS outlet and supplying a50 psi pressure with a minimum output flow rate of at least 160 L/min.
All metal construction
Six individual adjustable therapy flow controls each providing a 0 – 15 L/min flow rate
One 9/16 DISS self Sealing Outlet for the attachment of an automatic or demand valve resuscitator
Twenty five foot supply hose as standard to allow the unit to be placed where it is needed
Supplied with six adult medium concentration oxygen Therapy face masks with “Sure Flow” tubing
Input Pressure: 50 PSI
Operating Temperature: -18oC to +50oC (0oF to 122oF)
Storage Temperature: -40oC to +60oC (-40oF to140oF)
Relative Humidity for Storage and Operating Use: 15 to 95%
Output connection: 9/16” DISS self-sealing outlet
Therapy Flow Connections: Standard Firtree
Therapy Flow Range: 0,0.5,1,2,3,4,5,6,8,0,12,15 L/min
Weight (Multi Patient Unit only): 19.2oz/ 0.45kg (approx)
(millimeters): 203 x 127 x 50 (approx)
