Microscope camera TG-7

for laboratory microscopesfor stereo microscopesinspection

Overview

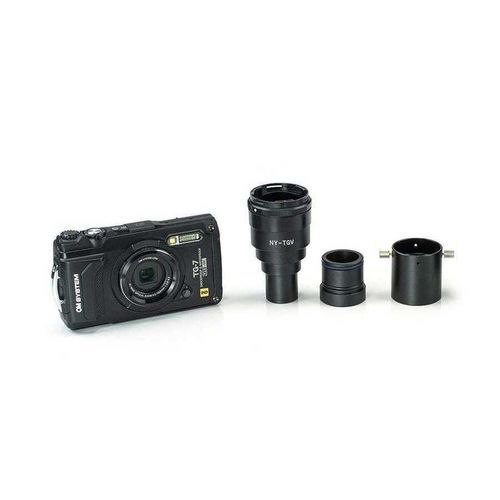

The TG-7 INDUSTRY NY-TGV kit is a compact digital imaging solution that attaches to a stereo microscope eyepiece to capture and display microscope images quickly and reliably. It supports direct HDMI output to external monitors, wireless control and image transfer via the OI.Share app or RM-WR2 remote, and high-resolution stills plus 4K video recording for industrial and laboratory observation.

Key features

• Converts a stereo microscope into a digital imaging system by attaching to the eyepiece; basic operation does not require a computer.
• Direct HDMI output for large-screen observation, enabling enlarged viewing for collaborative inspection and reduced operator fatigue.
• Wireless control and fast image transfer via OI.Share mobile app; compatible with RM-WR2 wireless remote for hands-free capture and vibration reduction.
• 4K video recording and high-resolution still capture for detailed documentation.
• USB Type-C connection for power and data; sensor-shift image stabilisation and advanced image processing available.
• Designed for efficient capture workflows: scene modes, aperture priority, dedicated Microscope mode, and focus/stacking functions for extended depth-of-field.

Usage notes / compatibility

• Compatible with most stereo microscopes; when attaching to a C-mount, an Ultra C-mount adapter (sold separately) is required for correct alignment.
• Intended for industrial inspection, documentation, large-screen demonstrations and collaborative review of microscope images.

Connectivity & control

• Wireless: Bluetooth and Wi‑Fi for image transfer and remote control via smartphone/tablet app.
• Remote: Supports RM-WR2 wireless remote for hands-free capture.
• Video output: HDMI output (Micro/Type D connector) for connection to external monitors.
• USB: USB Type-C for charging/power and data functions.

Included functionality / workflow

• Capture still images (including RAW) and 4K movies; transfer and review via OI.Share or HDMI monitor.
• Focus bracketing, focus stacking and Super Macro / Microscope modes to support high-magnification imaging and depth-of-field extension.
• On-device image playback and basic editing for quick review and adjustments.

Technical specifications

• Image sensor: 1/2.33" CMOS
• Effective pixels: 12 Megapixels (full resolution ~12.7 MP)
• Still image resolution: up to 4000 x 3000
• Video quality: 4K (3840 x 2160) recording (30p/25p, approx. 102 Mbps)
• Shutter speed: 1/2 - 1/2000 s ("< 4 s" in Night scene / A mode)
• Lens / optical zoom (system): optical zoom 4x (wide)
• USB: Type-C
• Wireless connectivity: Bluetooth and Wi‑Fi
• Wireless control: via OI.Share app; supports RM-WR2 wireless remote
• Recording formats: MOV (MPEG-4 AVC/H.264) for movies; RAW support for stills
• Image processing engine: TruePic
• Focus systems: AF modes including tracking and contrast-detection; Manual focus and Super Macro / Microscope mode
• Focus bracketing / stacking: multiple-frame bracketing (e.g., 10/20/30 frames) with selectable step sizes
• Exposure / metering: ESP and Spot metering; exposure compensation ±2 EV in 1/3 steps
• White balance: Auto & custom Kelvin (2000K–14000K), one-touch and presets
• Noise reduction, distortion compensation, shading compensation and pixel mapping available
• Monitor output: HDMI (Micro connector) suitable for direct connection to external monitors
• Removable media: SD / SDHC / SDXC (UHS-I supported); recommended UHS-I U3 for 4K video
• Power: internal rechargeable Li-ion battery (charges via USB Type-C); internal charging supported
• Ruggedness: dustproof, splashproof and freezeproof to specified conditions; water resistance and shock specifications per manufacturer tests
