Dental instrument sterilization container MH-STP01

for neurosurgery instrumentsfor surgical instrumentsaluminium

Overview

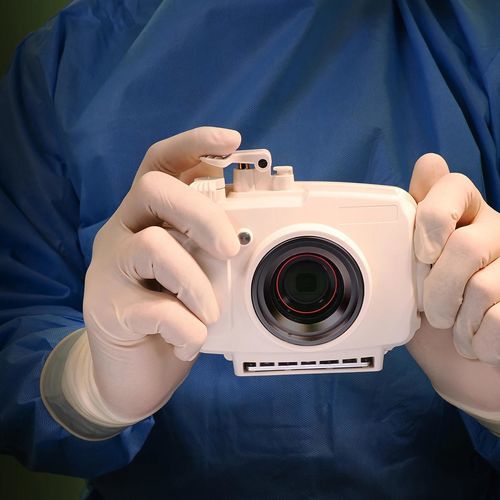

The MH Series Autoclave-Compatible Sterilisation Case provides a lightweight sealed housing to permit close-up and macro imaging in sterile clinical and surgical environments. It is designed to allow steam sterilisation of the enclosure and to accommodate compact cameras such as the TG-6 and TG-7 while preserving aseptic technique.

Key benefits

• Compatible with steam sterilisation at 134°C in approximately 20 minutes, reducing turnaround compared with gas/plasma methods.
• Lightweight construction suitable for high-pressure steam cycles.
• Mounting Support Unit reduces contamination risk during camera installation and removal.
• Designed for macro and microscope-mode imaging with TG-6 and TG-7 cameras.
• Non-slip surfaces for secure handling while wearing surgical gloves.

How it is used
Intended for close-up documentation of surgical sites and clinical procedures where sterile technique must be maintained. The enclosure enables framing and focus positions that are difficult to achieve with ceiling-mounted or distant cameras, allowing clinicians or trained staff to capture required image detail.

Product media
Includes a visual gallery and an embedded product video demonstrating sterile handling, sterilisation compatibility and example imaging. Downloadable brochure and instruction manual are available for clinical integration and cleaning procedures.

Technical specifications (table)
Product name: Autoclave-Compatible Sterilisation Case / Mounting Support Unit
Model number: MH-STP01 / MH-GP01
Main materials: Main body: Polyphenylsulfone resin; Lens window: Glass; Additional parts: Aluminum
Storage environment: -20°C - 60°C (-4°F - 140°F)
Airtightness: Equivalent to a water depth of 5 meters
Dimensions (MH-STP01): Approx. 157 mm (W) x 121 mm (H) x 80 mm (D)
Dimensions (MH-GP01): Approx. 184 mm (W) x 144.5 mm (H) x 43.5 mm (D)
Weight (MH-STP01): Approx. 425 g (digital camera and accessories not included)
Weight (MH-GP01): Approx. 238 g

Video / Demonstration
Product video available showing sterilisation process compatibility, handling workflow in clinical settings and representative imaging examples.

caractéristiques / spécifications techniques

• Models: MH-STP01 (Sterilisation Case), MH-GP01 (Mounting Support Unit)
• Autoclave compatibility: Steam sterilisation at 134°C in ~20 minutes
• Materials: Polyphenylsulfone resin (main body), glass lens window, aluminum components
• Ingress/airtightness: Equivalent to 5 m water depth
• Operating / storage temperature range: -20°C to 60°C
• MH-STP01 dimensions: ~157 × 121 × 80 mm; weight: ~425 g (camera and accessories excluded)
• MH-GP01 dimensions: ~184 × 144.5 × 43.5 mm; weight: ~238 g
• Compatible cameras: Designed for use with TG-6 and TG-7 compact cameras (macro / microscope imaging modes)
