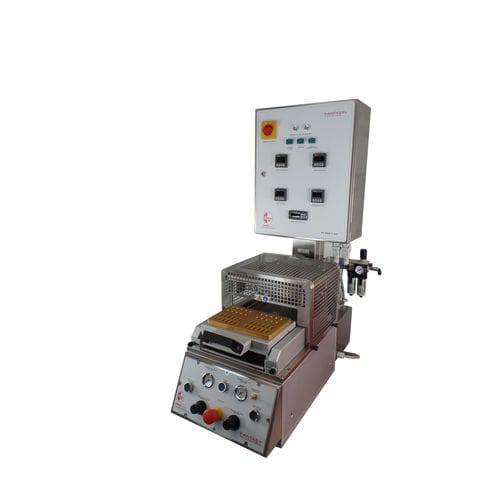

Electronic packing machine Fantasy ST

semi-automaticfloor-standingon casters

Product description Compact semi-automatic blistering machine for producing PVC-ALU and ALU-ALU blisters from pre-cut plastic and aluminium sheets. All blister packaging operations are performed on a single unit by changing format parts without the need for wrenches or specialised personnel. Custom projects and made-to-measure moulds can be developed to customer specifications. Electrical and electronic control is managed by on-board high-precision instruments to ensure consistent blister quality.

Main characteristics

• Semi-automatic blister machine
• Bench-top or floor-standing layout with pivoting wheels for easy handling
• Processing time control via high-precision timers
• Temperature control via high-precision thermoregulators
• Integrated safety systems
• Electronic piece counter
• Compatible with PVC-ALU and ALU-ALU blisters
• Plastic forming area: 212×132 mm
• Maximum PVC pocket height: 18 mm
• Maximum ALU-ALU pocket height: 10.5 mm

Production

• Daily output (7 h) PVC-ALU: up to approx. 3,000 units
• 4 blisters per stroke — max format 100×60 mm
• Daily output (7 h) ALU-ALU: up to approx. 1,300 units
• 1 blister per stroke — max format 160×95 mm (or smaller)

Technical specifications

• Dimensions (L×W×H): 400×780×1,100 mm; weight: 145 kg
• Compressed air connection: pipe int Ø 6 mm — ext Ø 8 mm
• Compressed air consumption: approx. 18 litres/cycle
• Operating pressure: 3–9 bar
• Main electric voltage: 230 V 50 Hz
• Power consumption: 1.8 kW
• Working temperatures: 30°/210° C
• Recommended ambient temperature: 20°/45° C
• Closed-circuit cooling with demineralised water at 23° C
