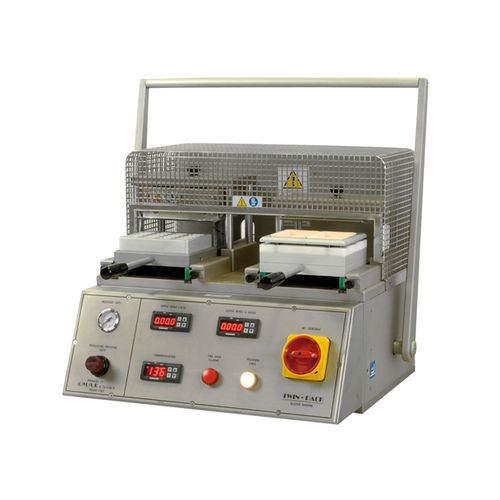

Semi-automatic packing machine TWIN-PACK

manualcompactbenchtop

Product overview
TWIN-PACK is a semi-automatic tabletop blistering machine designed for small production batches, clinical trials and stability tests in R&D laboratories. The machine features an independent double hot–cold station: forming and sealing are performed by the hot station while immediate blister cutting is executed by the cold station, reducing cycle times and increasing throughput. Quick change of forming parts enables format swaps without tools or specialist personnel, allowing thermoforming, sealing/coding and final cutting in sequence.

Production standard
Standard production format: two 68×89 mm blisters per stroke or one 136×89 mm blister. Custom moulds for specific dimensions, configurations or number of blisters per stroke are available on request.

Main characteristics

• Semi-automatic blistering machine with manual handling
• Compact, tabletop design
• Daily production up to 2,000 blisters (operational note: PVC‑ALU output approx. 1,500 units per 7‑hour shift)
• Forming area: 136×89 mm
• Maximum pocket depth for PVC blisters: 25 mm
• Compatible with various plastic materials and aluminium or alternative lidding materials

Production details

• Daily production (7 hours) for PVC‑ALU blisters: approx. 1,500 units
• Maximum cutting format: 136×89 mm
• ALU‑ALU blisters not supported

Technical specifications

• Machine layout (L×W×H): 600 × 800 × 630 mm; weight: 80 kg
• Compressed air connection: pipe internal Ø 6 mm — external Ø 8 mm
• Compressed air consumption: approx. 3 litres per cycle
• Operating pressure: 3–7 bar
• Main electric voltage: 230 V, 50 Hz
• Power consumption: 1 kW
• Machine working temperatures: 30°–200° C
• Environmental operating temperature: 20°–45° C
• Closed‑circuit cooling system: available on request
