Medical display MEDDP-727

diagnosticmedical imaging4K

Overview

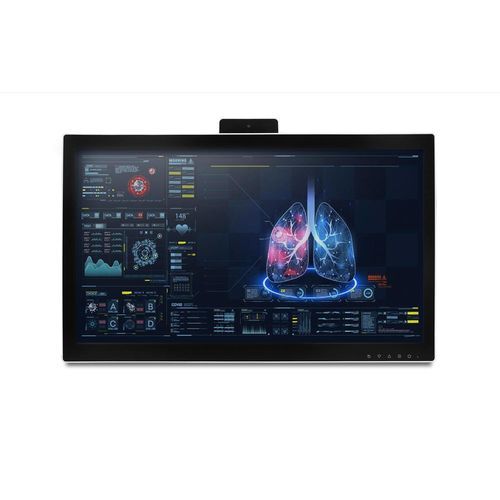

The MEDDP-727 is a 27" slim 4K (3840 x 2160) medical display designed for clinical and diagnostic environments. It provides a true flat, capacitive multi-touch interface, high luminance and multiple video inputs (including HD‑SDI) to support medical video workflows and integration with hospital systems.

Key features

• 27" LCD panel, UHD 3840 x 2160
• Capacitive multi-touch, true flat screen
• Brightness: 500 nits; Contrast ratio: 1000:1; Max colors: 1.07B
• Video inputs: HD‑SDI x1 (in/out), DP 1.2 x1, HDMI 2.0 x1, VGA x1, DVI‑D x1
• USB 3.0 Type-A, Line-in audio, 2 x 10W speakers
• Physical OSD keys; Optional modules: RFID, Camera, DICOM support
• VESA: 100 x 200 mm & 100 x 100 mm

Specifications
System

• OS Support: Windows® 10, Windows® 11
• Speakers: 2 x 10W
• USB: USB 3.0 (Type-A)

Display

• Display Size: 27"
• Panel: LCD, UHD 3840 x 2160
• Touch: Capacitive multi-touch, true flat
• Resolution: 3840 x 2160 (UHD)
• Max. Colors: 1.07 B
• Contrast Ratio: 1000:1
• Luminance: 500 nits
• Viewing Angle: 178°(H)/178°(V)

I/O

• HD SDI in x1, HD SDI out x1
• DP 1.2 x1, HDMI 2.0 x1, VGA x1, DVI‑D x1
• Audio: Line-in x1

Mechanical and Environmental

• Power Supply: DC-in / AC-in
• VESA: 100 x 200 mm and 100 x 100 mm
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Humidity: 10%–90% RH, non‑condensing
• Dimensions (WxDxH): 657 x 400 x 62 mm
• Net Weight: 7.82 kg; Gross Weight: 11.58 kg
• Certifications: CE (ITE), CE (Medical)

Model details

• Model: MEDDP-727
• Suitable for clinical displays, medical imaging review and video integration in healthcare environments
• Optional DICOM calibration and accessory modules available
