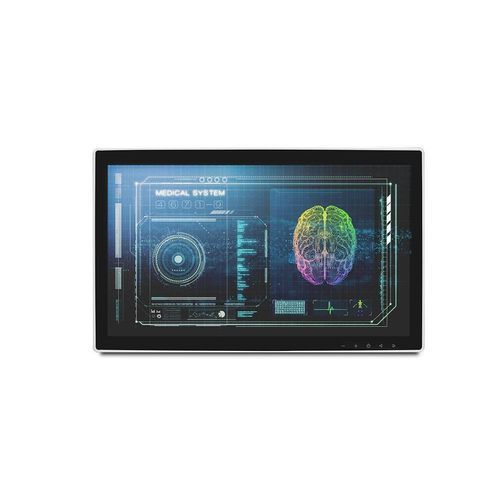

Medical display MEDDP-822P

1920 x 108021.5"LCD

Product overview

• 21.5" medical display designed for clinical environments
• 21.5" LCD panel with LED backlight, AHVA technology
• Brightness: 500 nits
• True flat, compact design suitable for mounting
• Capacitive touch available (optional)
• Dual built-in speakers
• Physical OSD buttons
• Optional DICOM mode (preset or individual calibration)
• Interfaces: DVI x1, HDMI x1, VGA x1, Video Out: HDMI 2.0 x1

Specifications
System
Speakers: 2.5W x2

Display
Display size: 21.5"
Touch: Projective capacitive (optional); PCT / AG (optional)
Resolution: 1920 x 1080 (FHD)
Colors: 16.7M
Contrast ratio: 1000:1
Luminance: 500 nits
Viewing angle: 178° (H) / 178° (V)
Panel type: AHVA

I/O
Video out: HDMI 2.0 x1
Audio: Line-in x1
Input signal: VGA x1; HDMI 1.4 x1; DVI-D x1

Mechanical and Environmental
Power supply: DC-in / AC-in
VESA mount: 100 x 100 mm; 75 x 75 mm
Operating temperature: 0°C to 35°C (32°F to 95°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Dimensions (WxDxH): 526 x 324 x 54 mm
Package size: 645 x 378 x 210 mm
Gross weight: 6.8 kg
Net weight: 5.0 kg
Certifications: CE (ITE); CE (Medical); UL; cUL

Technical features

• Model: MEDDP-822P
• Display: 21.5" FHD (1920 x 1080), AHVA, 500 nits, 1000:1
• Touch (optional): Projective capacitive (PCT) / AG
• Colors: 16.7M
• Speakers: 2.5W x2 (built-in)
• Inputs: VGA x1, HDMI 1.4 x1, DVI-D x1
• Video out: HDMI 2.0 x1
• Audio: Line-in x1
• Power: DC-in / AC-in
• VESA mount: 100 x 100 mm; 75 x 75 mm
• Operating temp: 0°C to 35°C
• Storage temp: -20°C to 60°C
• Dimensions: 526 x 324 x 54 mm
• Net weight: 5.0 kg; Gross weight: 6.8 kg
• Certifications: CE (ITE); CE (Medical); UL; cUL
