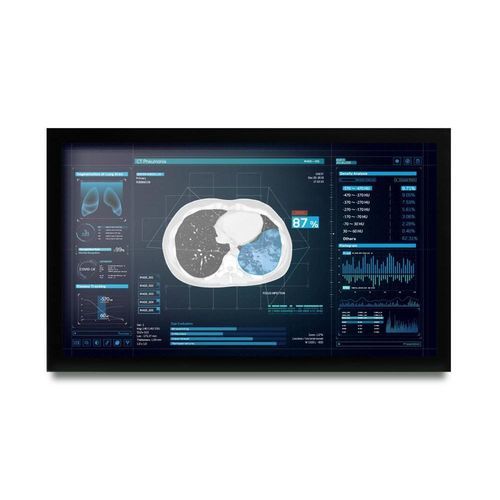

Medical display MEDDP-627full HD1920 x 108027"
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Resolution
- full HD, 1920 x 1080
- Display size
- 27"
- Technology
- LCD, LED-backlit
- Configuration
- wall-mounted
- Options
- touch screen, touch
- Aspect ratio
- 16:9
- Input
- HDMI, DisplayPort, DVI
- Brightness (cd/m²)
350 cd
- Viewing angle
178 °
- Weight
8.5 kg
(18.7 lb)- Width
64.9 cm
(25.6 in)- Height
6.3 cm
(2.5 in)- Depth
39 cm
(15.4 in)
Description
Overview
System
Display
I/O
Mechanical and Environmental
Technical specifications
- 27-inch slim medical display for clinical environments
- 27-inch LCD panel with LED backlight
- Compact design
- Inputs: DVI x1, HDMI x1, DP x1
- Wide viewing angle 178˚(H)/178˚(V)
- True flat screen with projective capacitive (PCT) touch option
- Invisible OSD design
- Low power consumption
- DICOM standard optional
System
- OS Support: Windows® 10; Windows® 11
- Speakers: 2W x2
Display
- Size: 27-inch
- Touch: Projective capacitive touch screen (optional)
- Resolution: 1920 x 1080 (FHD)
- Max colors: 16.7M
- Contrast ratio: 3000:1
- Luminance: 350 nits
- Viewing angle: 178˚(H)/178˚(V)
I/O
- Video Out: HDMI 1.4
- Audio: Line-in x1
- Input Signals: DP 1.2 x1; HDMI 1.4 x1; DVI-D x1
Mechanical and Environmental
- Power Supply: DC-in; AC-in
- VESA: 100mm x 200mm; 100mm x 100mm
- Operating Temperature: 5°C ~ 40°C (41°F ~ 104°F)
- Storage Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Storage Humidity: 10% ~ 90% @ 35°C, non-condensing
- Dimension (WxDxH): 648.85 x 389.55 x 62.93 mm
- Package Size: 730 x 560 x 300 mm
- Gross Weight: 10.5 kg
- Net Weight: 8.5 kg
- Certifications: CE (ITE); CE (Medical)
Technical specifications
- Model: MEDDP-627
- Display: 27-inch FHD (1920 x 1080), 350 nits, 3000:1 contrast
- Touch: Projective Capacitive (optional)
- Inputs: DP 1.2 x1, HDMI 1.4 x1, DVI-D x1
- Audio: Line-in x1; Speakers: 2W x2
- Power: DC-in / AC-in
- VESA mount: 100 x 200 mm & 100 x 100 mm
- Operating temp: 5°C–40°C; Storage temp: -10°C–60°C
- Dimensions: 648.85 x 389.55 x 62.93 mm; Net weight: 8.5 kg
- Certifications: CE (ITE), CE (Medical)
