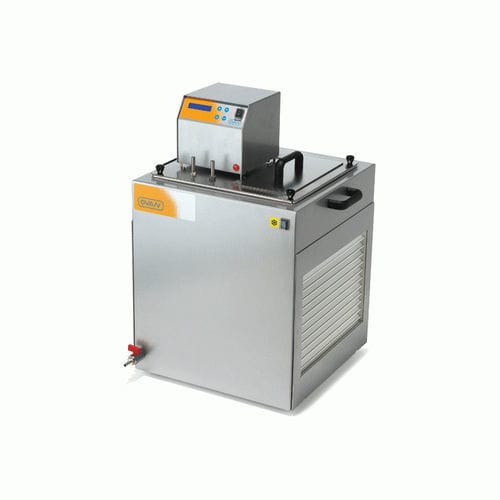

Circulating water bath BC10E

circulating water bath
circulating water bath
Add to favorites
Compare this product


Temperature control
circulating, microprocessor-controlled, refrigerated, shaking
Temperature range

Min.: -10 °C (14 °F)

Max.: 100 °C (212 °F)


12 l (3.2 gal)


Precision cryothermostat. Inner tank made of stainless steel AISI 304, and metallic housing protected with Epoxi paint of great resistance to corrosion. Temperature controlled by microprocessor, by means of an integrated Pt100 sensor, with “ARA V2” algorithm of temperature regulation with “fuzzy logic” control. Digital display LCD backlighted with indication of the selected and real value of temperature. Membrane push-button control. CFC free compressor of 1/5 HP, noiseless and without vibration. Circulation pump (6L/min) (max. pressure 200mbar). Double safety thermostat: cut out indicator lamp. The unit will cut out if there is insufficient liquid or if the temperature exceeds the maximum temperature. safety automatic disconnection with acoustic alarm that prevents overheating from the programmed temperature (+2,5ºC). Connects again when the Tª is below the limit. Indication on the display of high temperature on the tank, that provides protection against burn. From 45ºC. Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display. Memory of the last settings. External faucets for external thermostatization. Water drainage faucet and handles for a easy transport. Lid included of 254x130mm. Main switch ON/OFF protected against splashes. Model BC10E Reference - 10000-01116 Thermostatization Max. Vol. (L) - 12 Heating power (W) - 1600 Refrigerating power (W) - 300 Tª range (ºC) - -10 – 100* Resolution (ºC) - 0,1 Stability (ºC) - +/- 0,1 General Data Tank Material - Stainless Steel Tribox 52x52x70
