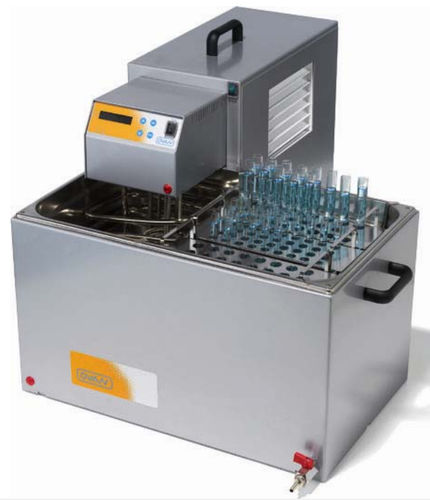

Heating water bath BC series
refrigeratedmicroprocessor-controlledshaking

heating water bath
heating water bath
Add to favorites
Compare this product


Characteristics

Temperature control
heating, microprocessor-controlled, refrigerated, shaking
Configuration
benchtop
Temperature range

Min.: 0 °C (32 °F)

Max.: 100 °C (212 °F)

Capacity

12 l, 20 l, 27 l, 45 l (3.2 gal)

Description

Refrigerated precision baths. Inner tank made of stainless steel AISI 304 and metallic housing protected with Epoxi paint of great resistance to aggressive surroundings. Temperature controlled by microprocessor, by means of an integrated Pt100 sensor, with “ARA V2” algorithm of temperature regulation with “fuzzy logic” control. Digital Display LCD backlighted showing the selected and actual temperature. Membrane push-button control. CFC free compressor of 1/5 HP, noiseless and without vibration. Pump for homogenization (6L/min) (max. pressure 200mbar). Safety thermostat cut out indicator lamp. The unit will cut out if there is insufficient liquid or if the temperature exceeds the maximum temperature. Indication on the display of high temperature on the tank, that provides protection against burn. From 45ºC. Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display. Memory of the last settings. Mains switch ON/OFF protected against splashes. Water drainage faucet and handles for a easy transport. Technical Specifications Model BC012E BC020E BC027E BC045E Reference - 10000-01147 10000-01148 10000-01149 10000-01150 Thermostatization Max. Vol. (L) - 12 20 27 45 Heating power (W) - 1600 Refrigerating power (W) - 300 600 Tª range (ºC) - 0 – 100 Resolution (ºC) - 0,1 General Data Tank material - Stainless steel AISI 304 Useful Dimension.(cm) - 15x30x15 - 32x30x15 32x30x20 44x50x15 Ext. Dimensions (cm) - 36x79x46 - 53x79x46 53x79x51 65x99x46 Weight (kg) - 21,0 23,3 29,0 32,8 Protection IP - IP52
