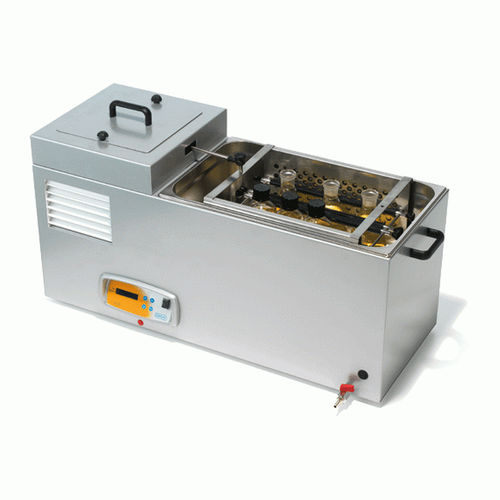

Heating water bath BSC127E
microprocessor-controlledrefrigeratedshaking

heating water bath
heating water bath
Add to favorites
Compare this product


Characteristics

Temperature control
heating, microprocessor-controlled, refrigerated, shaking
Configuration
benchtop
Temperature range

Max.: 100 °C (212 °F)

Min.: 0 °C (32 °F)

Capacity

27 l (7.1 gal)

Description

Refrigerated bath with horizontal shaking. Mobile inner tank made of stainless steel AISI 304, and metallic housing protected with Epoxi paint of great resistance to corrosion. Temperature controlled by microprocessor, by means of an integrated Pt100 sensor, with “ARA V2” fuzzy logic algorithm for high precision temperature control, without surpassing reference temperature. Digital display LCD backlighted with indication of the selected and real value of temperature and speed. Membrane push-button control. CFC free compressor of 1/5 HP, noiseless and without vibration. Safety thermostat cut out indicator lamp. The unit will cut out if there is insufficient liquid or if the temperature exceeds the maximum temperature. Indicator of high temperature on the tank provides protection against burns. From 45ºC. Memory of the last settings. Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display. Mains switch ON/OFF protected against splashes. Water drainage faucet and handles for a easy transport. Technical Specifications Model BSC127E Reference - 10000-01136 Thermostatization Max. Vol. (L) - 27 Heating power (W) - 1600 Refrigerating power (W) - 300 Tª range (ºC) - 10 – 100 Resolution (ºC) - 0,1 Shaking Power (W) - 50 Type of movement - horizontal Amplitude (mm) - 40 Speed range (rpm) - 10-100 Resolution (rpm) - 5 General Data Tank Material - Stainless Steel AISI 304 Inner Dimensions (cm) - 35x26x17 External Dimensions (cm) - 85x40x40 Weight (kg) - 30,0 Protection IP - IP52 Packaging cm - Tribox 97x45x56

Catalogs
