Oxygen pressure regulator R1600medicalfor oxygen cylinderssingle-stage
Add to favorites
Compare this product
Characteristics
- Fluid type
- oxygen
- Applications
- medical, for oxygen cylinders
- Number of stages
- single-stage
- Connection type
- in-line
- Features
- adjustable-flow, high-pressure
- Other characteristics
- with flow selector
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 15 l/min
(3.96 us gal/min)- Inlet pressure
138 bar
(2,001.5 psi)- Output pressure
4 bar
(58 psi)
Description
Overview

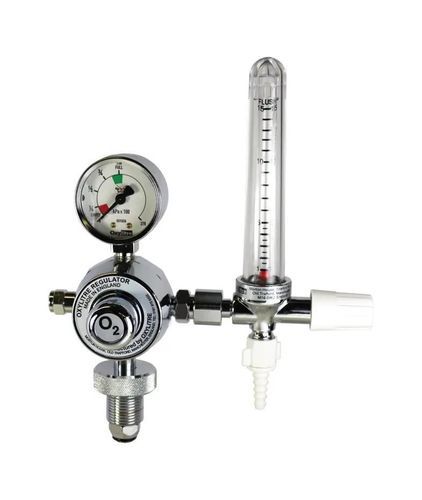

The R1600 medical oxygen regulator with integrated flowmeter provides controlled oxygen delivery from cylinder supply for clinical and emergency applications. Designed for straightforward operation, it combines a bullnose cylinder fitting compatible with UK Size F & G and a brass chrome-plated body for long service life.
Additional information
Dependable and easy to maintain, the R1600 is supplied complete with flowmeter and pressure gauge. The product is designed for routine medical use and carries a 7 year warranty.
Specification
The R1600 medical oxygen regulator with integrated flowmeter provides controlled oxygen delivery from cylinder supply for clinical and emergency applications. Designed for straightforward operation, it combines a bullnose cylinder fitting compatible with UK Size F & G and a brass chrome-plated body for long service life.
Additional information
Dependable and easy to maintain, the R1600 is supplied complete with flowmeter and pressure gauge. The product is designed for routine medical use and carries a 7 year warranty.
Specification
- OXYGEN
- Body material/finish: Brass, chrome plated
- MRI compatibility: NOT MRI Conditional
- Cylinder fitting: Bullnose (compatible with UK Size F & G cylinders – BS 341–3)
- Maximum inlet pressure: 138 bar
- Output pressure: Pre-set 4 bar
- Pressure indication: High-pressure cylinder content gauge
- Flowmeter: Supplied complete; brass chrome plated, 9/16 UNF
- Connections: 3/8 in nut & liner connection; tubing nipple
- Flow range: 0–15 Lpm (O2)
- Warranty: 7 year warranty
