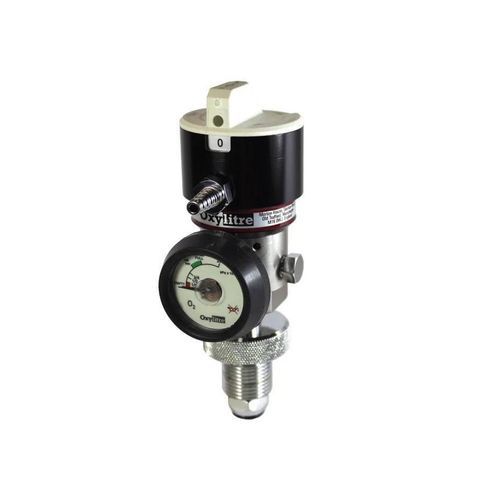

Oxygen pressure regulator R2403

medicalfor oxygen cylinderssingle-stage

Product Overview
Oxylitre Compact Medical Regulators are engineered for clinical and emergency oxygen delivery. The R2403 is a 200 bar rated, stainless steel-bodied regulator with a bullnose cylinder fitting compatible with UK Size F & G cylinders (BS 341-3). It provides a pre-set 4 bar output and an integrated Select-A-Flow flowmeter covering 0–15 L/min.

Specification

• OXYGEN
• Stainless steel body
• Bullnose cylinder fitting (compatible with UK Size F & G Cylinders – BS 341-3)
• 200 bar maximum inlet pressure
• Pre-set 4 bar output pressure
• High pressure luminous cylinder content gauge
• Complete with flowmeter
• Select-A-Flow flowmeter (11 settings) (other flow rates available)
• Tubing nipple
• 0–15 L/min (O2)

Characteristics / Technical specifications

• Model: R2403
• Product type: Compact Select-A-Flow Regulator, bullnose cylinder fitting
• Intended gas: Oxygen
• Body material: Stainless steel
• Cylinder connection: Bullnose (UK Size F & G, BS 341-3)
• Maximum inlet pressure: 200 bar
• Output pressure: Pre-set 4 bar
• Flow control: Select-A-Flow flowmeter with 11 settings (other flow rates available)
• Flow range: 0–15 L/min (O2)
• Indicator: High pressure luminous cylinder content gauge
• Includes: Tubing nipple
• Warranty: 7 years
