Battery-operated surgical suction pump PSP001

portable

Overview

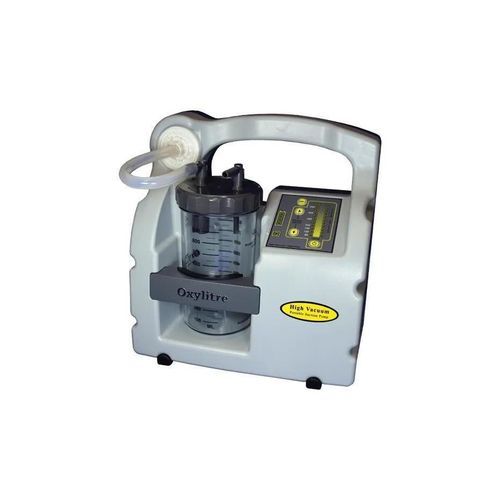

Portable Suction Pump PSP001 "petite elite" provides a compact, field-tested suction solution for healthcare and emergency services. The unit features a high-impact moulded enclosure, an autoclavable 1000 ml collection jar and an easy-access battery compartment. The control interface uses a luminous LED touch panel and an instant maximum vacuum override for operational control. Low maintenance and long service life with a 7-year warranty.

Key features

• High vacuum / high flow performance
• Single 1000 ml autoclavable jar assembly
• Robust high-impact resistant moulded enclosure
• Encapsulated bacterial / hydrophobic filter disk
• Luminous LED touch control panel
• Instant maximum vacuum override button
• Battery level and charging indicator
• Vacuum range: 80 to 500 mmHg
• Flow rate: >25 L/min
• AC input: 110–240 V
• DC input: 12–28 V
• Battery: 12 V DC rechargeable, 4.3 mAh
• Run time: >1 hr 20 min
• Weight: 4.9 kg
• Approx. size: 310 mm x 305 mm x 170 mm
• Peak sound output at max vacuum (1 m): 65 dB

Technical specifications

• Vacuum range: 80 to 500 mmHg
• Flow rate: >25 L/min
• Power: 110–240 V AC and 12–28 V DC
• Battery: 12 V DC rechargeable, 4.3 mAh
• Run time: >1 hr 20 min
• Jar: Single 1000 ml autoclavable
• Weight: 4.9 kg
• Dimensions (approx): 310 mm x 305 mm x 170 mm
• Noise: 65 dB at max vacuum (1 m)
