Battery-operated surgical suction pump PSP003B

for surgical drainage and debridementportable

Overview

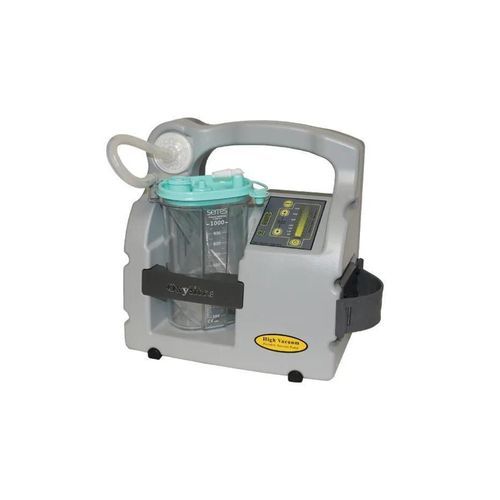

Oxylitre portable suction pump PSP003B "petite elite" provides a compact, high‑vacuum suction solution for clinical and emergency use. Engineered for portability and user accessibility, the unit features a luminous LED touch control panel, easy access battery compartment and a high‑impact moulded enclosure for field durability. Designed to deliver consistent suction performance across a wide vacuum range suitable for airway management and fluid removal.

Product Notes
Units are designed for low maintenance and long service life. Supplied with a 7 year warranty. SERRES jar bracket supplied; jar and liner not included. Includes tubing retaining strap and encapsulated bacterial/hydrophobic filter disk for infection control.

Specification

• High vacuum capability: 80 to 500 mmHg
• Flowrate: >25 Lpm
• SERRES jar bracket (jar and liner not included)
• Tubing retaining strap/holder
• Encapsulated bacterial/hydrophobic filter disk
• Luminous LED touch control panel
• Instant maximum vacuum override button
• Battery level / charging indicator
• Power (AC): 110–240 V AC
• Power (DC): 12–28 V DC
• Battery: 12 V DC rechargeable (specified 4.3mAh)
• Run time: >1 hr 20 min
• Weight: 4.9 kg
• Dimensions (approx): 310 mm x 305 mm x 170 mm
• Noise: Peak 65 dB at max vacuum (measured at 1 m)

Technical specifications

• Model: PSP003B
• Vacuum range: 80–500 mmHg
• Flowrate: >25 litres per minute
• AC input: 110–240 V
• DC input: 12–28 V
• Battery: 12 V DC rechargeable (4.3mAh specified)
• Typical runtime: >1 hour 20 minutes
• Net weight: 4.9 kg
• Approx. dimensions: 310 x 305 x 170 mm
• Acoustic output: 65 dB peak at 1 m
• Included features: SERRES jar bracket (jar/liner not included), tubing strap/holder, encapsulated bacterial/hydrophobic filter, luminous touch panel, max vacuum override, battery level/charge indicator
• Warranty: 7 years
