Electric surgical suction pump CSP001

for surgical drainage and debridementportable

Overview

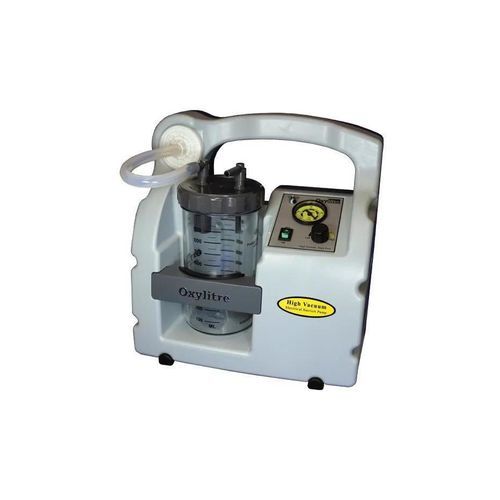

Oxylitre's Compact Electrical Suction Pump (CSP001) is a user-focused, portable suction unit intended for clinical and emergency use. The housing is high-impact moulded plastic, providing a lightweight, compact footprint. The unit is field-tested and designed for reliable suction performance with straightforward maintenance.

Key Features

• High vacuum and high flow performance
• Single 1000 ml standard autoclavable reusable jar assembly
• High impact resistant moulded plastic enclosure
• Encapsulated bacterial/hydrophobic filter disk
• Panel-mounted vacuum gauge (0–760 mmHg) and control knob for adjustable vacuum
• Typical operating vacuum range: 80–500 mmHg
• Flow rate > 25 L/min
• Input supply: 110–240 V AC
• Approximate weight: 3.4 kg
• Approximate dimensions: 310 mm x 305 mm x 170 mm
• Peak sound output at max vacuum (1 m): 65 dB
• Long service life with 7 year warranty

Applications
Designed for use in healthcare and emergency services where a compact electrical suction pump is required. Suitable for clinical suction procedures that demand the stated vacuum and flow performance.

Technical specifications

• Model: CSP001
• Jar capacity: 1000 ml (standard autoclavable reusable jar)
• Vacuum gauge: Panel mounted, 0–760 mmHg indication
• Typical operating vacuum range: 80–500 mmHg
• Flow rate: > 25 L/min
• Power supply: 110–240 V AC
• Weight: 3.4 kg
• Dimensions (approx.): 310 mm x 305 mm x 170 mm
• Peak sound output at max vacuum (1 m): 65 dB
• Filter: Encapsulated bacterial/hydrophobic filter disk
• Enclosure: High impact resistant moulded plastic
