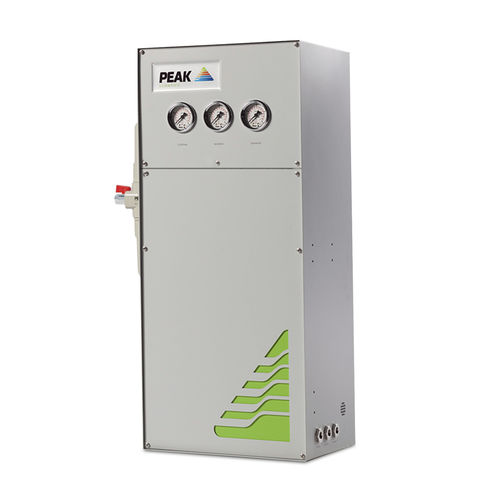

Nitrogen generator Infinity 1033
airfor LC/MSfloor-standing

nitrogen generator
nitrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
nitrogen, air
Applications
for LC/MS
Configuration
floor-standing
Technology
membrane
Output

57 l/min, 75 l/min, 78 l/min (15 us gal/min)

Description

Membrane technology is at the heart of the Infinity 1033, generating laboratory-grade nitrogen on-site to users with an existing air supply. With the ability to perform at its maximum 24 hours a day, if required, and minimum maintenance requirements, the Infinity 1033 is a durable, hassle-free solution for SCIEX LC-MS instruments requiring curtain gas flows of up to 57 L/min, source gas flows of up to 78 L/min and exhaust gas flows of up to 75 L/min. Features Capable of supplying multiple SCIEX LC-MS instruments 24/7 operation at optimum performance if required Gas is supplied on demand so generator works to your schedule Few moving parts means little maintenance required and ensures long life of the generator Minimal set-up required Completely silent in operation 12 month comprehensive on-site warranty Gas Gas Type: Nitrogen Min Gas Flow: 0 Max Gas Flow: 57 Max Output Pressure: 110psi/7.6bar Gas Type: Air Max Gas Flow: 78L/min Max Output Pressure: 110psi/7.6bar Gas Type: Air Max Gas Flow: 75L/min Max Output Pressure: 108psi/7.4bar Site & Installation Gas Outlets Fitting: 3x 1/4" BSPP Min Inlet Pressure: 120psi/8.3bar Max Inlet Pressure: 145psi/10bar Min Air Inlet Flow: 340 Min Inlet Air Quality: 1.4.1 Start Up Time: 30 mins Power Consumption: none Voltage: N/A Frequency: N/A Current: N/A Heat output: none Max Operating Temp: 30°C / 86°F Particles: <0.01 ‎μm Phthalates: none Suspended Liquids: none Accreditations: CE Dimensions & weight Size (HxWxD) mm: 730 x 428 x 250 mm Size (HxWxD) Inches: 28.7 x 16.9 x 9.8 inches Generator Weight: 20kg / 44lbs
