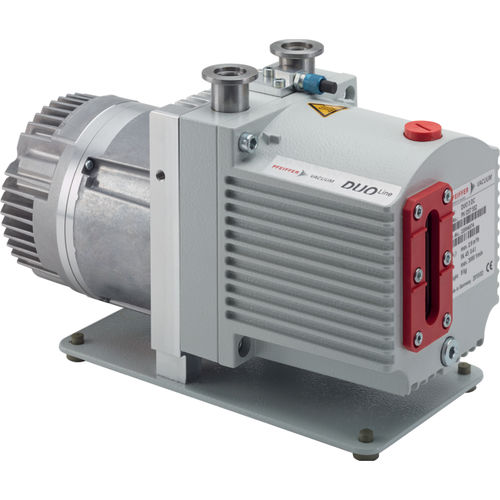

laboratory vacuum pump / rotary vane / lubricated / high-performance
Duo 3/M series

{{requestButtons}}

Characteristics

  • Applications:

    laboratory

  • Technology:

    rotary vane

  • Other characteristics:

    lubricated, high-performance

  • Flow:

    Min.: 2.5 m³/h (88.29 ft³/h)

    Max.: 2.9 m³/h (102.41 ft³/h)

  • Power:

    Min.: 0.15 kW (0.2 hp)

    Max.: 0.18 kW (0.24 hp)

Description

Minimal space requirement due to compact design
Easy integration thanks to the UL and IEC 61010 certification of the entire pump
Single-phase universal motor available, allowing an almost worldwide network coverage
Optionally with magnetic coupling

Duo 3 DC, 24 V DC, DN 16 ISO-KF
Order number: PK D57 553
Dual-stage, high-performance rotary vane pump with a pumping speed of 2.5 m3/h
With 24 V DC-drive
Integrated gas balllast and safety valve
To connect pump with power supply TPS 310, connector plug P 4723 102 is necessary
Suitable for operation with the wide range of temperature from -20 to +40 °C
Very low noise level 53 dB (A) allows installation close to a work space
Lowcost of ownership due to power consumption < 100 W
Low maintenance due to brushless drive and optional magnetic coupling
Easy installation and small footprint

Duo 3, 1-phase motor, 230–240 V, 50/60 Hz
Order number: PK D57 712
Dual-stage, high-performance rotary vane pump with a pumping speed of 2.5 m3/h at 50 Hz / 2.9 m3/h at 60 Hz
With single-phase motor with C14 connector plug inside the terminal box
Integrated gas ballast and safety valve
For all low and medium vacuum applications
Optional with magnetic coupling
Special feature: Various motor voltages for worldwide employment
Other motor voltages available on request

Duo 3, Rotary vane pump 105 V, 50 Hz, with switch, 115–125 V, 60 Hz, C14-plug
Order number: PK D57 707
Dual-stage, high-performance rotary vane pump with a pumping speed of 2.5 m3/h at 50 Hz / 2.9 m3/h at 60 Hz
With single-phase motor with C14 connector plug inside the terminal box
