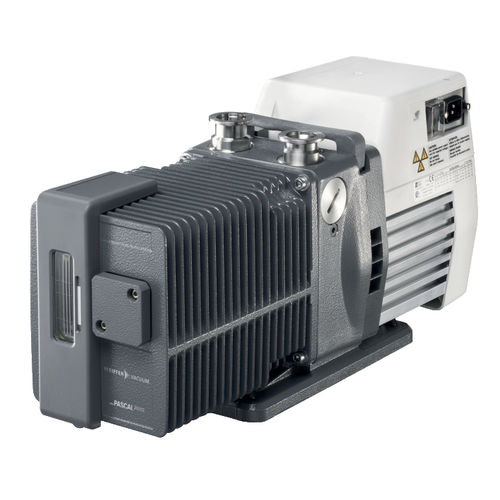

Laboratory vacuum pump Pascal 2015 C2 series
rotary vane

laboratory vacuum pump
laboratory vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Technology
rotary vane
Flow

Min.: 14 m³/h
(494.41 ft³/h)

Max.: 16.5 m³/h
(582.69 ft³/h)

Power

Min.: 0.45 kW
(0.61 hp)

Max.: 0.66 kW
(0.9 hp)

Pressure

Min.: 0 mbar
(0 psi)

Max.: 0.01 mbar
(0 psi)

Description

Increased resistance thanks to special materials Very low ultimate pressure, ideal for medium vacuum applications Single-phase universal motor available, allowing an almost worldwide network coverage Adjustable inlet and outlet ports in horizontal or vertical orientation for better integration Prepared for PFPE operating fluids Pascal 2015, C2 version, 1-phase motor, 90–132 V, 50 Hz/60 Hz, CE/UL/CSA Order number: 215C2MHEN Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 14 m³/h | 8.24 cfm | 233.33 l/min Pumping speed at 60 Hz 16.5 m³/h | 9.71 cfm | 275 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor Mains requirement: voltage 50 Hz 180 – 254 V Mains requirement: voltage 60 Hz 180 – 254 V Mains cable Yes, EU power cable Corrosive gas version YES Operating fluid PFPE oil Rated power 50 Hz 0.45 kW Rated power 60 Hz 0.55 kW Protection category IP43 Weight 27 kg | 59.52 lb Pascal 2015, C2 version, 1-phase motor, 90–132 V, 50 Hz/60 Hz, CE/UL/CSA Order number: 215C2MLAN Flange (in) DN 25 ISO-KF Flange (out) DN 25 ISO-KF Pumping speed at 50 Hz 14 m³/h | 8.24 cfm | 233.33 l/min Pumping speed at 60 Hz 16.5 m³/h | 9.71 cfm | 275 l/min Ultimate pressure 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Ultimate pressure with gas ballast 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar Ultimate pressure without gas ballast 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar Motor version 1-ph motor
