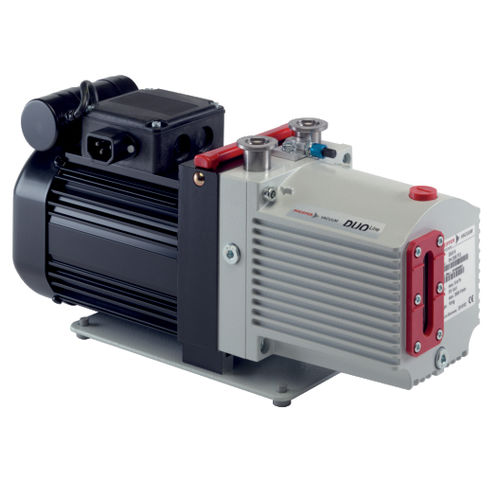

Laboratory vacuum pump Duo 6/M series

rotary vanehigh-performancelubricated

Minimal space requirement due to compact design Highest water vapor compatibility, ideal for research and industry Easy integration thanks to the UL and IEC 61010 certification of the entire pump Single-phase universal motor available, allowing an almost worldwide network coverage Optionally with magnetic coupling Duo 6, 3-phase motor, 230/400 V, 50 Hz | 265/460 V, 60 Hz, 1TF Order number: PK D58 602 Dual-stage, high-performance rotary vane pump with a pumping speed of 5 m3/h at 50 Hz / 6 m3/h at 60 Hz With 3-phase motor, cable screw connection in terminal box Integrated gas ballast and HV safety valve For all low and medium vacuum applications Optional with magnetic coupling Other motor voltages available on request Duo 6, 1-phase motor, 100–110 V, 50 Hz | 100–120 V, 60 Hz Order number: PK D58 707 Dual-stage, high-performance rotary vane pump with a pumping speed of 5 m3/h at 50 Hz / 6 m3/h at 60 Hz With single-phase motor with C14 connector plug inside the terminal box Integrated gas ballast and HV safety valve For all low and medium vacuum applications Optional with magnetic coupling Other motor voltages available on request Duo 6, 1-phase motor, 115/230 V, 50/60 Hz Order number: PK D58 711 Dual-stage, high-performance rotary vane pump with a pumping speed of 5 m3/h at 50 Hz / 6 m3/h at 60 Hz With single-phase motor with C14 connector plug inside the terminal box Integrated gas ballast and HV safety valve For all low and medium vacuum applications Optional with magnetic coupling Other motor voltages available on request
