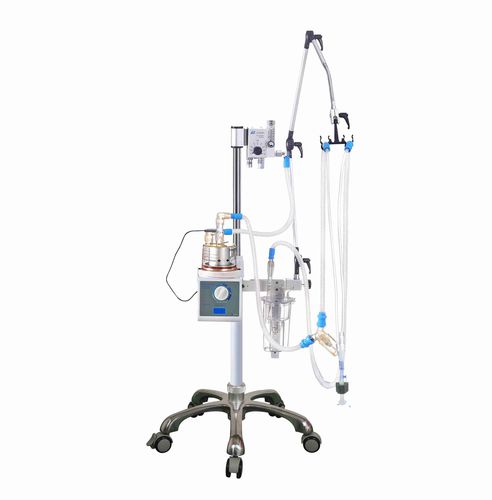

AD-I NCPAP Is a cost-effective product, very popular in the market. Equipped with a high-performance portable medical air compressor, multiple models of medical respiratory humidifier to choose from, high precision air oxygen blender mixer. This bubble CPAP for neonates/preemies/infants is a cost-effective product, very popular in the market. Equipped with a high-performance portable air compressor, multiple models of humidifiers to choose from, high precision air oxygen blender.
Working Principle
The air source is provided by adjusting the air compressor and enters the air oxygen mixer, so that the air oxygen concentration ratio most suitable for adjusting the air oxygen mixer enters the humidification device and enters the human respiratory system through the breathing tube, so that the patient's respiratory circulation is normal.
Features
The air compressor uses Thomas/Garshida compression pump, stable performance and high efficiency
High performance high precision air oxygen mixer, can be adjusted to the best air oxygen concentration ratio
The whole respiratory system can be portable and mobile, convenient for emergency and rescue
Specification
FIO2 - 21-100% (±3%)
CPAP - 3-10cm H2O
Flow - 2-18LPM
Noise - ≤55dB(A)
Power Source - AC 220V/110V, 50-60Hz
Gas source - Air/Oxygen@0.3-0.4MPa
Alarm - Gas supply pressure difference > 0.1MPa
Humidifier - Standard: PN-2000F
Optional: PN-2000FB; PN-2000FC850
Air Compressor - PN-4000 (Optional)
Trolley - Yes
