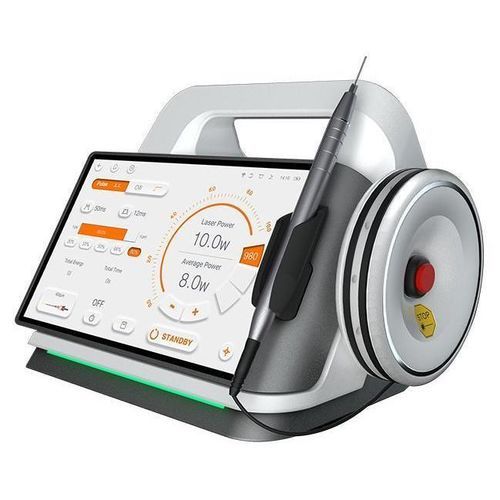

Dental laser H1 Smart

dental biostimulationphysical biostimulationtooth whitening

Overview
The H1 is a 980 nm soft-tissue dental diode laser engineered for precision and versatility across a broad range of dental procedures. Placed between entry-level and professional devices, it combines higher power and extended functions suited to medium-sized clinics and experienced practitioners.

Key features

• Wavelength: 980 nm optimized for soft-tissue dentistry.
• Maximum optical output: 20 W to support wider clinical applications than lower-power units.
• Operating modes: Continuous wave (CW) and Pulsed modes.
• Frequency: up to 20 kHz with variable duty cycle for precise thermal control.
• All-copper cooling system for enhanced heat dissipation and long-term output stability.
• Control system: multi-core CPU with redundancy and monitoring for reliability and safety.
• Smart OS: intuitive user interface, personalized/expert modes, multimedia tutorials and 57 preset treatment procedures.
• Display: 7-inch 2K Ultra HD touch screen for clear visualization and easy operation.
• Fiber connection: supports 200 µm, 300 µm and 400 µm fibers with standard SMA905 connector.
• Aiming beam: 650 nm indicator, output < 2 mW.
• Portable form factor: compact dimensions and lightweight design (≤2 kg) with internal battery (2850 mAh) and 18 VDC/5 A power supply with protective features.

Typical applications
Aesthetic

• Teeth whitening
• Gingivoplasty
• Gingival depigmentation
• Lip depigmentation
• Aesthetic contouring
• Gingival contouring
• Micro-coagulation
• Lip repositioning surgery

Oral Surgery

• Exposure of unerupted teeth
• Hemangioma
• Granuloma
• Hemostasis
• Leukoplakia
• Fistula
• Lichen planus
• Oral papillectomies
• Hyperplasia
• Fibroma
• Mucocele
• Oral Submucous Fibrosis (OSF)

Prosthodontics

• Troughing
• Vestibuloplasty
• Soft-tissue crown lengthening
• Gingival polyp

Implant

• Implant uncovering
• Stage II implant surgery
• LAPIP (first and second pass)
• Laser troughing prior to impression
• Biostimulation

Periodontics

• Laser debridement
• Gum biostimulation
• Laser assisted periodontal therapy (LAPT) first & second pass
• Laser bacterial count reduction (LBR)
• Antimicrobial photodynamic therapy (aPDT)
• Gingival recession treatment
• Frenectomy / frenotomy
• Operculectomy
• Gingivectomy

LLLT / Photobiomodulation

• Desensitization
• Aphthous ulcers
• Wound healing
• Temporomandibular disorder therapy
• PDT support
• Herpetic lesions
• Angular cheilitis
• Biostimulation
• Burning mouth syndrome

Endodontics

• Root canal disinfection
• Periapical abscess management
• Pulpotomy
• Direct pulp capping

Clinical advantages

• Anti-inflammatory effects and bacterial inhibition relevant to oral infections and inflammation.
• Endodontic use: effective in removing infected pulp tissue and supporting regenerative outcomes.
• Cosmetic applications: whitening and pigmentation removal for improved dental aesthetics.

Market recognition & support

• Extensive clinical and educational resources, including multimedia tutorials to accelerate user training.
• Presets and tailored user modes to help clinicians adopt treatments quickly.
• Provided registration assistance and clinical support resources to facilitate market access and clinical adoption.

Technical specifications

• Wavelength and Power: 980 nm / 20 W
• Operating Mode: CW / Pulsed
• Frequency: Up to 20 kHz
• Duty Cycle: Variable
• Display: 7 inches 2K Ultra HD touch screen
• Control Software: Smart OS
• Fiber Connection: 200 µm, 300 µm and 400 µm with SMA905 connector
• Aiming Beam: 650 nm, output < 2 mW
• Dimensions (L×W×H): 225 mm × 150 mm × 150 mm
• Weight: ≤ 2 kg
• Battery Capacity: 2850 mAh
• Power Supply: 18 VDC, 5 A (with overload, short-circuit and overheat protections)
• Standards compliance examples: IEC 60601 series, IEC 60825-1, ISO 13485 and related medical device standards as referenced by the manufacturer.
