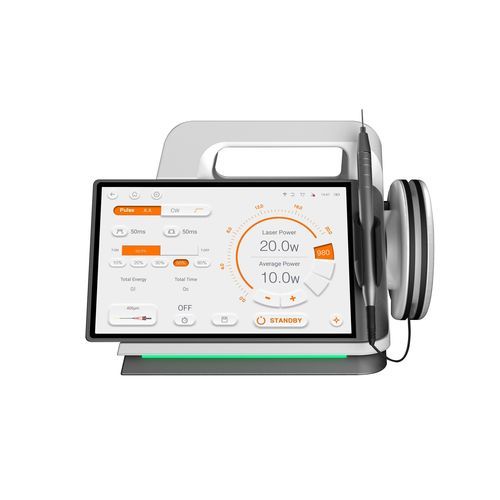

Dental laser H1 Plus

dental biostimulationdiodetabletop

Overview
H1 Plus dental laser from Pioon is a 980 nm diode system with super‑pulsed operation delivering up to 20 W peak power in ultra‑short microsecond pulses. It expands clinical options beyond standard continuous wave and basic pulsed diode modes, enabling precise soft‑tissue procedures with controlled thermal effects. The device is intended for routine dental soft‑tissue surgery, disinfection and adjunctive therapies in clinical practice.

Key features

• Super‑pulsed technology: up to 20 W peak with microsecond pulses for concentrated energy delivery and precise soft‑tissue cutting.
• Dental‑optimized wavelength: 980 nm suitable for soft‑tissue procedures.
• Adjustable duty cycle: user‑selectable range 10%–90% to balance cutting and thermal interaction.
• Operating modes: Continuous Wave (CW), Pulsed, Super‑Pulsed for flexible clinical protocols.
• Clinical guidance: 57+ built‑in cases with parameter recommendations to streamline setup.
• Preset and Expert modes: one‑tap presets for typical treatments or full manual control for advanced users.
• Multimedia training: integrated videos and step‑by‑step tutorials for clinician education.
• Wireless updates: Wi‑Fi connectivity for software updates and access to clinical parameter library.
• Display and interface: 7‑inch 2K Ultra‑HD touchscreen for clear parameter control.
• Improved hardware: higher peak power versus prior H1 model and customizable super‑pulsed settings.
• Portable design: internal 2850 mAh battery and 16 GB storage for cases and training materials.

Comparative performance (CW / Pulsed / Super‑Pulsed)
Postoperative pain and swelling: Not good / Average / Excellent
Thermal damage: Not good / Average / Excellent
LLLT therapy: Excellent / Average / Average
Coagulation: Excellent / Excellent / Excellent
Cutting effect: Average / Excellent / Excellent

Clinical application examples

• Troughing
• Aphthous ulcers
• Assisted peri‑implantitis
• Root canal disinfection
• Pocket sterilization

Technical specifications

• Model name: H1 Plus
• Wavelength and power: 980 nm / 20 W peak
• Operating modes: Continuous Wave (CW), Pulsed, Super‑Pulsed
• Frequency: up to 20 kHz
• Duty cycle: variable, adjustable 10%–90%
• Display: 7‑inch 2K Ultra‑HD touchscreen
• Control software: Smart OS
• Fiber connection: 200 µm, 300 µm, 400 µm with standard SMA905 connector
• Aiming beam: 650 nm, < 2 mW
• Dimensions (L×W×H): 225 mm × 150 mm × 150 mm
• Weight: ≤ 2 kg
• Battery capacity: 2850 mAh
• Internal storage: 16 GB
• Power supply: 18 V DC, 5 A
• Built‑in features: 57+ clinical cases, intelligent guidance, customizable parameters, multimedia tutorials, wireless updates
