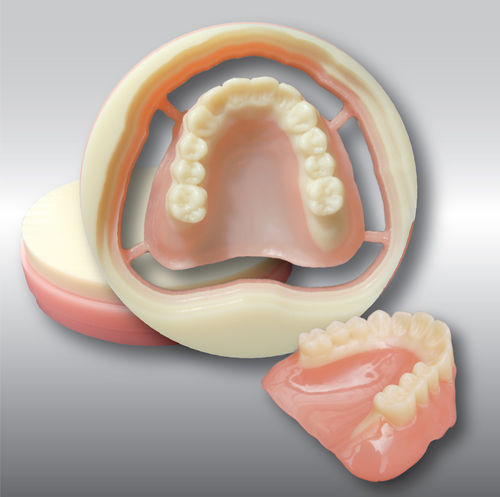

B.2.1. PINK CAD-CAM DISC basic
Can be used to mill digitally designed highly esthetic and functional dentures
Vickers hardness: min 26 HV.
Flexural strength: min. 114 MPa.
E-Module: min. 2771 MPa.
Residual monomer < 1%.
Diameter: 95 - 100 mm.
Thickness: 25, 27, 30 mm.
full dentures, partial dentures, temporary immediate load implant dentures
pink, pink veined
INDICATIONS FOR USE
- Fabrication of dentures
POLIDENT PINK CAD/CAM DISCS TYPE BASIC
INSTRUCTIONS FOR USE
The denture base is designed with suitable CAD dental software.
The disc is fixed in the disc holder in the milling machine. The previously designed STL-file with third party software is loaded in the machine CAM software. Milling strategies for PMMA
must be considered according to the milling machine instructions. After milling the denture, it is separated from the disc with standard grinding tools.
Artificial teeth are attached on denture base with PMMA resin or light curing composite material according to manufacturer`s instructions. The artificial teeth must be roughened and
prepared according to manufacturer`s instructions. The disc does not require special treatment in the case of using PMMA resin bonding but usually requires a prior treatment in the
case of using composite material bonding according to manufacturer`s instructions. After the teeth are attached the denture can be finished with standard grinding and polishing tools
for PMMA resin
