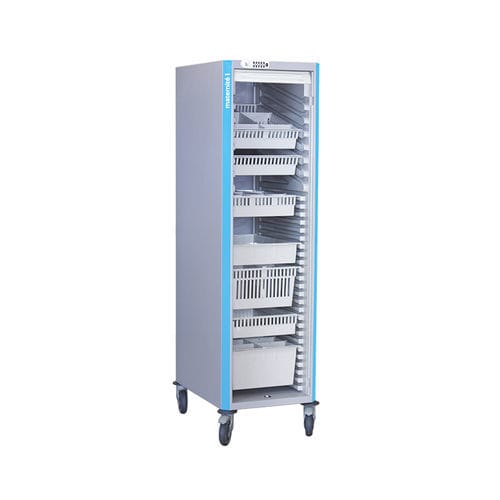

Security cabinet Neop®

for medicinefor medical devicesfor fluids

Product overview
Neop® 400 x 600 single-column mobile cabinets are designed for the secure, hygienic and ergonomic storage of medicines, fluids and medical devices. Compact and versatile, they are suitable for fitting-out nursing rooms, wards and technical platforms where organized, mobile medical storage is required.

Available variations

• Height: 160 cm or 180 cm
• Slides (intercalaires): Tilted in upper position; pitch 40 mm
• Bumpers: With or without
• Colors: Green apple; Magenta pink; Sky blue

Accessories (additional)

• 600 x 400 ISO trays
• Standard handle
• Extension lateral shelf
• Partitioning kit

Technical characteristics (detailed)

• Complete one-piece welded structure in electro-galvanized steel with epoxy anti-corrosion treatment
• Colour strip: 70 µm calendered PVC vinyl film with acrylic adhesive
• Slides: ABS, 40 mm pitch
• Closing system (optional): roller shutter
• Locking system (optional): code lock
• Wheels: 4 × Ø 125 mm (2 braking + 2 swivelling) with wheel and wheel-pin double blocking
• Stops: 4 non-marking round stop blocks in EVA
• Wheel cover: non-marking rubber (polyamide hub)
• Empty weight: 54 kg (H. 160) / 58 kg (H. 180)
• Cabinet marking: available on request (e.g. department, floor or facility)

Dimensions

• H. 160 with bumpers: L. 545 x D. 780 x H. 1695 mm
• H. 160 without bumpers: L. 513 x D. 738 x H. 1695 mm
• H. 180 with bumpers: L. 545 x D. 780 x H. 1855 mm
• H. 180 without bumpers: L. 513 x D. 738 x H. 1855 mm
