Supply cabinet Neop®

dispensingfor medicinefor medical devices

Product description

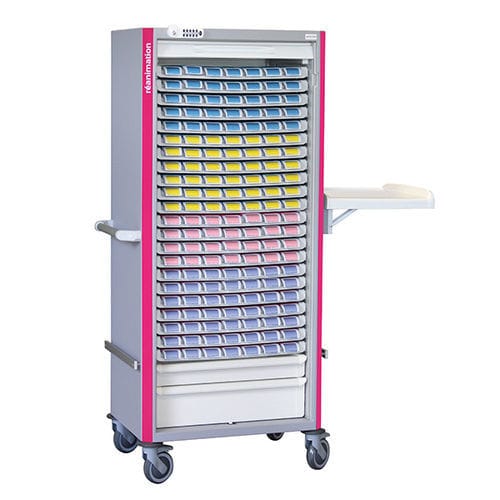

Neop® 600 x 400 mobile cabinets are part of a wide range of cabinets for medicine, fluids and medical devices storage.
Ergonomics, hygiene, compactness and versatility make this range of cabinets the ideal tool for fitting out nursing rooms or technical platforms.

Variations
Height:
- 160 cm
- 180 cm

Slides:
- Horizontal on entire height: 40 mm level
- Horizontal on entire height: 50 mm level
- Horizontal on entire height: 62 mm level
- Tilted in upper position

Bumpers:
- No
- Yes

Colors:
- Green apple
- Magenta pink
- Sky blue

Additional accessories

• 600 x 400 drawers
• 600 x 400 ISO trays
• Bins
• Standard handle
• Modulo XL dispensers
• Telescopic shelf
• Foldable extension shelf

Caractéristiques / spécifications techniques

• Complete welded one-piece structure, electro-galvanized steel, epoxy anti-corrosion treated
• Strip of colour: 70 micron calendered PVC vinyl film, with acrylic adhesive
• Slides: ABS
• Closing system (optional): roller shutter
• Locking system: code lock (optional)
• 4 wheels Ø 125 mm (2 braking + 2 swivelling), wheel and wheel-pin double blocking
• 4 non-marking round stop blocks made of EVA
• Simple non-marking rubber wheels (Polyamide cover)
• Empty weight: 48 kg (H. 160) / 52 kg (H. 180)
• Dimensions:
  – H. 160 cabinet with bumpers: L. 745 x D. 580 x H. 1695 mm
  – H. 160 cabinet without bumpers: L. 716 x D. 538 x H. 1695 mm
  – H. 180 cabinet with bumpers: L. 745 x D. 580 x H. 1888 mm
  – H. 180 cabinet without bumpers: L. 716 x D. 538 x H. 1888 mm
• Cabinet marking on request (e.g. name of department, floor or establishment)
