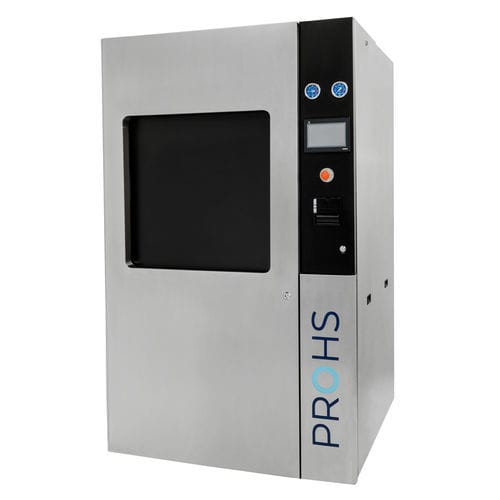

PROHS Horizontal Steam Sterilizers has as basis of its function the control of the Temperature and Pressure parameters seeking the complete elimination of all living micro organisms.
Through fast and uniform heat transference, PROHS Horizontal Steam Sterilizers are an indispensable tool in places where high levels of sterilization are required.
- Totally made in AISI 316L stainless steel.
- Vertically sliding doors, with automatic command. - Colour "Touch Screen" display, allowing a simple and intuitive interface with the sterilizer.
- Allows the identification of the user responsible based on a password.
- Water and energy saver.
- The entire control is made from the PLC (Programmable Logic Controller).
- Fast printer with graphical registers and conclusive results in real time.
- Fully customizable programs, allowing the creation of 9 solids programs and 5 liquid programs. - Liquid Cycle with product temperature probe.
Connections to External Nets
- Power Supply: 3-400V-50/60Hz
- Water: 3/4" I 1 a 6 Bar (x105Pa)
- Compressed Air: 3/8" I 5 a 7 Bar (x105Pa)
- Steam: 1,2" I 3,5 to 5 Bar (x105Pa)
- Sewer: 1,5" Heat resistant Material
Programs / Standard Cycles
-9 Solid cycles
-5 Liquid Cycles
-Bowie Dick (test cycle)
-Leakage test (test cycle)
