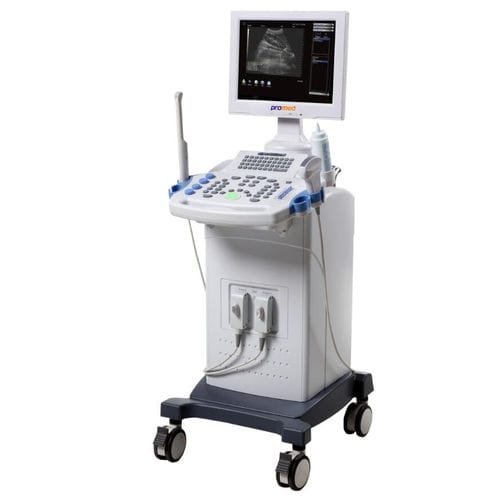

For clinical diagnosis of abdomen, obstetrics and gynecology, organelle, small organ, urology and intra-cavity ultrasound inspection, cardiology and cardiovascular ultrasound screening.
Main Unit Parameters -
Platform - PC Control Platform based on WINDOWS system
Scanning Model - Electronic Linear Array, Electronic Convex Array
Image Storage - BMP, JPG, DCM, and tif are available; built-in hard disk≥160G
Display Depth:250mm
Scanning Angle≥152º
Image Processing:Edge enhancement, tissue harmonic, scanning line density, Gamma
Correction, Histogram
Pseudo-color≥ 10 types
Image Enhancement≥7 types
Focus Adjustment Focus Number≥4;
focus span and focus position are adjustable
External Ports: Video port, RS-232 Port, USB Port, DICOM3.0 Port, PS/2 Port and
XGA Port
Features
• Adopting Multiple technologies such as digital scan converter (DSC), digital beam forming (DBF) , real-time dynamic aperture (RDA), dynamic receive apodization (DRA), dynamic receive focusing (DRF), dynamic frequency scan (DFS) and so on.
• Image optimization and enhancement, smoothing, frame correlation processing, pseudo-color, Gamma Correction, Real-time Zoom/Zoom to area
•Automatically report generating accords to image collection, diagnostic description and measurement projects.
• Diversified and Complete image text medical records management function; Typical & upgradable medical records import/export function; these two functions can satisfy needs of extended clinic applications.
Standard configuration:3.5MHz Convex
Options:
7.5MHz Linear,5.0MHz Micro-Convex,6.5MHz Transvaginal Convex,7.5MHz Endorectal Linear
DVD-RW,Video Printer,Biopsy bracket,Trolley
