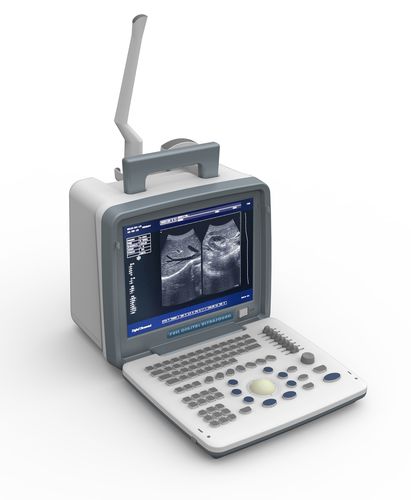

Portable ultrasound system DP-6800
for gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imagingfor urology ultrasound imaging

portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
portable
Application
for gynecological and obstetric ultrasound imaging, for abdominal and pelvic ultrasound imaging, for urology ultrasound imaging, for breast ultrasound imaging, for musculoskeletal ultrasound imaging
Imaging modes
B/W
Options
built-in console
Screen size
12-inch
Probe frequency

5 MHz, 6.5 MHz, 7.5 MHz

Weight

6 kg
(13.23 lb)

Description

Specifications l Scan pattern: convex array, dimpling, linear array l Display mode: B, B/B, 4B, B+M, and M l Image multiplying factor: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes), ×0.8, ×2.0 (display penetration depth) l Dynamic range: 0~120dB adjustable. l Focus position: dynamic digital electron focusing point-by-point. l Pre-process: changeable aperture, dynamic apodization, dynamic digital filtering, etc. l Pro-process: 8 types of γ correction, line correlation, frame correlation, point-line correlation, linear interpolation and 16 types of pseudo color processing, etc. l Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe. l Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc. l Annotation function: hospital name, patient’s name, gender and age: 64 body marks (with probe), full-screen character annotation, real-time clock display; l Puncture guide: The puncture guide line can be displayed under B mode. l Gain control: 8 segments TGC and overall gain can be adjusted respectively. l Image polarity: left and right flip, black and white flip, up and down flip. l Capacity cine loop: real time display 256 consecutive images which are memorized successively l Image playback: series playback or check one by one l Permanent storage: 128 images l Output interface: SVGA video output offers connection to SVGA color display;
