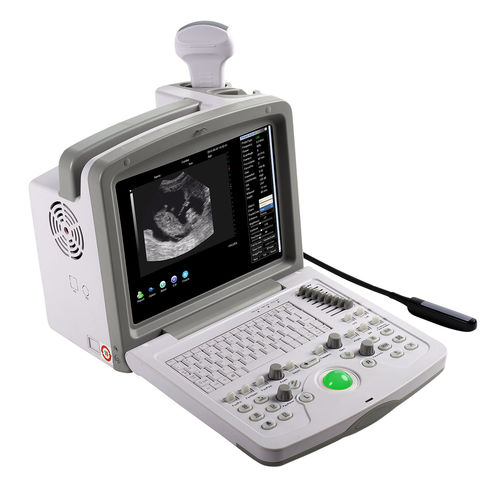

Portable ultrasound system DP-6700
for multipurpose ultrasound imagingB/Wbuilt-in console

portable ultrasound system
portable ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
portable
Application
for multipurpose ultrasound imaging
Imaging modes
B/W
Options
built-in console

Description

Ultrasound Scanner With PC Platform For clinical ultrasonography of abdomen, obstetrics, gynecology, organelle, small organ, superficial organs, urology, cavity, cardiology and cardiovascular. Main Unit Parameters - Platform - PC Control Platform based on WINDOWS system Scanning Model - Electronic Linear Array, Electronic Micro-convex Array, Electronic Convex Array Image Storage - BMP, JPG, DCM, and tif are available; built-in hard disk≥160G Display Depth - 250mm Image Processing - Edge enhancement, tissue harmonic, scanning line density, Gamma Correction, Histogram Zoom - ≥5 times (real-time or freeze) Pseudo-color - ≥ 10 types Image Enhancement - ≥7 types Focus Adjustment - Focus Number ≥4; Focus span and focus position are adjustable Patient Records Management System - Add, Search, Revise and Report functions are available External Ports - Video port, RS-232 Port, USB Port, DICOM3.0 Port, PS/2 Port and XGA Port Features ★ - Adopting Multiple technologies such as digital scan converter (DSC), digital beam forming (DBF) , real time dynamic aperture (RDA), dynamic receive apodization (DRA), dynamic receive focusing (DRF), dynamic frequency scan (DFS) and so on ★ - Image optimization and enhancement, smoothing, frame correlation processing, pseudo-color ,Gamma Correction, Real-time Zoom/Zoom to area ★ - Automatically report generating accords to image collection, diagnostic description and measurement projects. ★ - Diversified and Complete image text medical records management function; Typical & upgradable medical records import/export function; these two functions can satisfy needs of extended clinic applications.
