CT Scan veterinary test phantom

ultrasound imagingfor dogsfor canines

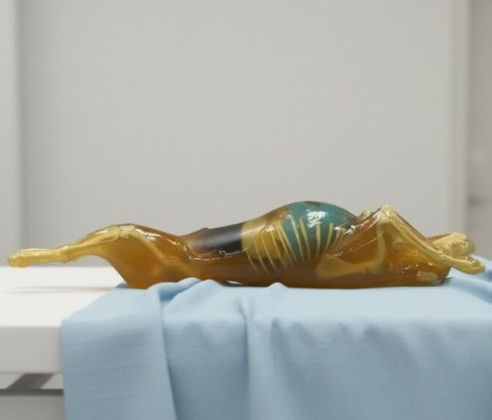

Product overview: The canine ultrasound training phantom reproduces detailed skeletal and soft-tissue anatomy derived from a real CT dataset of a two-year-old male Bull Mastiff x Rhodesian Ridgeback (original 37 kg), scaled to approximately 16 kg for handling and training. The model is intended for veterinary sonographers, radiographers, residents and instructors for diagnostic imaging and procedural practice. AI-assisted segmentation was used to ensure anatomical fidelity for both imaging and interventional training.

Key features:

• Ultrasoft tissue simulation: Lifelike tactile properties and ultrasound response closely matching in vivo tissue.
• Advanced vascular detailing: Refined vasculature in liver, spleen and pancreas for accurate organ positioning.
• Comprehensive cardiac anatomy: All chambers, valves and major vessels (IVC, SVC, aorta) for cardiac imaging practice.
• Expanded abdominal anatomy: Realistic intestinal tract (small and large intestines, caecum, rectum) and complete abdominal organs.
• Biopsy capability: Designed to permit ultrasound-guided abdominal biopsy procedures.
• Durable for repeated training: Materials selected for repeated clinical use without rapid degradation.

Materials:

• Soft tissues and organs: urethane-based soft resin formulated for ultrasound realism
• Synthetic bones: ceramic-reinforced epoxy composite for structural accuracy

Supplied with:

• Detailed user manual with imaging protocols
• Protective carry case for transport and storage

Anatomical contents:

• Adult canine head
  • 3D-printed skull
  • 3D-printed jaw bone
• Adult canine tail
  • 3D-printed tailbone
  • Skin-mimicking material
• Adult canine torso
  • 3D-printed complete spine
  • 3D-printed complete ribcage
  • 3D-printed shoulders (scapulae)
  • 3D-printed pelvis
• Realistic heart with internal structures
  • Valves
  • Chambers
  • Major heart vessels – IVC, SVC, aorta
• Lungs
• Diaphragm
• Stomach
• Liver with vessels
• Gallbladder
• Kidneys with vessels and arteries
• Spleen with vessels
• Large intestine
• Small intestine
• Caecum
• Rectum
• Pancreas with vessels
• Bladder
• Ureters
• Adult canine front limbs
• Adult canine rear limbs

Technical specifications:

• Imaging compatibility: Ultrasound
• Original CT dataset: 2-year-old male Bull Mastiff x Rhodesian Ridgeback (37 kg)
• Model scaled for handling: approx. 16 kg
• Includes skeletal and soft-tissue anatomical structures
• AI-assisted anatomical replication for high imaging fidelity
• Ultrasoft urethane-based resin for tissues
• Ceramic-reinforced epoxy composite for synthetic bones
• Ultrasound-guided biopsy capability in the abdominal region
• Includes detailed vasculature and realistic heart structures (chambers, valves, major vessels)
• Supplied with user manual and protective carry case
