CT scan test phantom Mini-CT

for tomographybreastgeneral purpose

Product overview

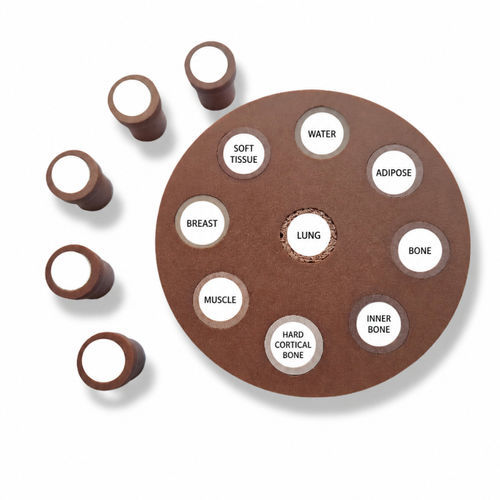

A compact tissue-equivalent imaging phantom designed to evaluate CT imaging performance. The Mini-CT Tissue Mimicking Phantom is suitable for system calibration, research, education and portable QA testing. It features a soft-tissue mimicking background with multiple interchangeable tissue-equivalent inserts for controlled Hounsfield unit and density assessment.

Evaluates:

• Geometric accuracy
• Homogeneity
• CT Hounsfield number
• Tissue characterisation
• Dose calculation verification

Specification:

• Dimensions: 100 mm diameter × 20 mm thickness
• Compact, lightweight design
• Soft tissue-mimicking background material
• Multiple interchangeable tissue-equivalent inserts
• Includes tissue-mimicking materials for:
  • Water
  • Adipose tissue
  • Lung tissue
  • Soft tissue
  • Breast tissue
  • Muscle
  • Bone
  • Inner bone
  • Hard cortical bone
• Precision machined construction
• Custom sizes and configurations available

Comes with:

• Electron and physical density chart
• Detailed user manual
• Protective storage case

Applications:

• CT system evaluation
• Educational and training purposes
• Research and development
• Hounsfield Unit verification
• Material characterisation

Technical specifications

• Model: Mini-CT Tissue Mimicking Phantom
• Diameter: 100 mm
• Thickness: 20 mm
• Background material: soft tissue-mimicking material
• Inserts: multiple interchangeable tissue-equivalent inserts (water, adipose, lung, soft tissue, breast, muscle, bone, inner bone, hard cortical bone)
• Construction: precision machined
• Accessories included: electron and physical density chart, detailed user manual, protective storage case
• Suitable for: system calibration, QA testing, R&D, education, Hounsfield Unit and dose verification
• Custom sizes and configurations: available
