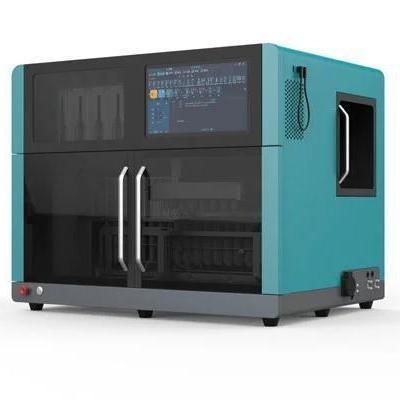

Automatic sample preparation system SPEvaautomatedfor viscous productsfor food applications
Add to favorites
Compare this product
Characteristics
- Operation
- automatic, automated
- Applications
- for food applications, for viscous products
- Preparation type
- pipetting, for solid-phase extraction, evaporation
- Sample type
- blood, urine, for food, for water
- Preparation format
- for tubes
- Other characteristics
- high-throughput, with touchscreen
Description
Product Overview
SPEva integrates solid phase extraction (SPE) and nitrogen evaporation into a single automated workflow. The system performs conditioning, sample loading, rinsing, drying and elution automatically, while continuously evaporating and replacing the eluent solvent and recirculating through the cartridge. Operation does not require human intervention, reducing operator workload and exposure to solvents. SPEva supports multiple processing modes for applications such as pesticide-residue analysis in food, enrichment of organic pollutants from large-volume environmental water samples, and detection of toxic compounds in viscous matrices like blood and urine. Its compact pump and valve design enables high throughput and precise results, improving laboratory analytical capacity.
Features
Specification
SPEva integrates solid phase extraction (SPE) and nitrogen evaporation into a single automated workflow. The system performs conditioning, sample loading, rinsing, drying and elution automatically, while continuously evaporating and replacing the eluent solvent and recirculating through the cartridge. Operation does not require human intervention, reducing operator workload and exposure to solvents. SPEva supports multiple processing modes for applications such as pesticide-residue analysis in food, enrichment of organic pollutants from large-volume environmental water samples, and detection of toxic compounds in viscous matrices like blood and urine. Its compact pump and valve design enables high throughput and precise results, improving laboratory analytical capacity.
Features
- Able to load samples via needles, pipettes, large-volume kit
- Simultaneously process 6 samples
- SPE and nitrogen blowing integrated in one system
- User-friendly software (touch screen control)
Specification
- PFAS Applicable: Available in PFC main unit, PEEK tubing
- SPE Extraction channel: 8
- SPE cartridge size: 3mL, 6mL, 12mL, 20mL
- Sample capacity: 48, 80
- Sample volume: 10mL to 20L
- Sample tube: 10/20/60/80mL glass tubes, 15/50mL centrifuge vials
- Solvent capacity: 6
- Pipette tip sample loading: Available in 48 positions of 1mL tips for sample loading
- Software interface: Touch screen control
- Dimension: 100cm x 65cm x 70cm
- Weight: 155kg
- Voltage: 200 to 240V, 50/60Hz
- Operating temperature: 10 to 40°C
- Operating humidity: 20 to 80%
