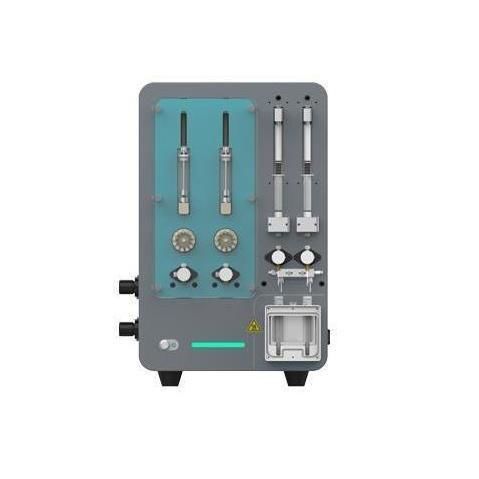

Automated sample preparation system Fotector 02P

for sample preparationfor solid-phase extractionevaporation

Product overview
RayKol Fotector 02P is a compact automated portable solid-phase extraction (SPE) system that integrates SPE workflows with evaporation. It performs SPE cartridge conditioning, sample loading, rinsing and elution, and includes a built-in gas source for solvent evaporation. Designed for on-site preparation of large-volume water samples, Fotector 02P enables enrichment and purification of organic pollutants and subsequent evaporation concentration.

Key features

• Compact, portable design suitable for mobile laboratories
• Handles complex water sample matrices
• Built-in concentration module for nitrogen blowing evaporation
• Compatible with multiple cartridge sizes (3 mL, 6 mL, 12 mL, 20 mL)
• Two extraction channels for parallel processing
• Windows PC software control via cable connection

Technical specifications

• Extraction channels: 2
• SPE cartridge sizes: 3 mL, 6 mL, 12 mL, 20 mL
• Solvent capacity: 8
• Water bath temperature: ambient to 50℃
• Software interface: Windows PC; cable connection
• Dimensions: 400 mm x 310 mm x 580 mm
• Weight: 25 kg
• Voltage: 200–240 V, 50/60 Hz
