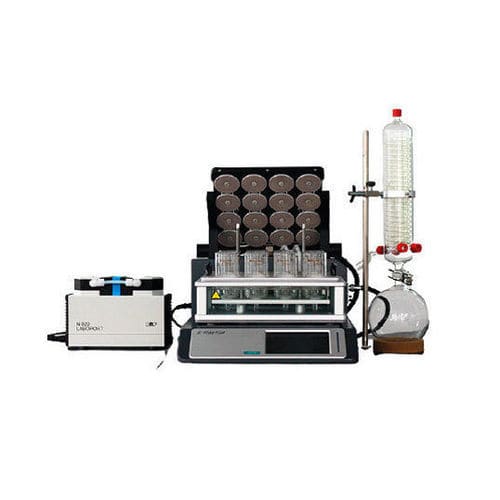

Laboratory evaporator MPE

for samplesrotaryparallel

Product overview
Raykol MPE high-throughput vacuum parallel evaporation system combines the advantages of rotary and nitrogen evaporators into an automated platform. It uses a precise digital vacuum control and uniform water-bath heating with orbital oscillation to ensure consistent evaporation conditions across samples and to minimize analyte loss under low vacuum, supporting reproducible analytical results.

Key features

• Simultaneous concentration for 16 or 36 samples
• High throughput with reduced evaporation time
• High solvent recovery rate
• Transparent sink for clear visual monitoring
• Compatible with multiple vial formats (65/70/260/320 mL)
• Anti-boiling design to prevent analyte loss

Applications

• Concentration of samples for pharmaceutical, clinical and analytical laboratories
• Sample preparation for residue analysis and environmental testing
• High-throughput workflows in CROs and quality control labs
• Preparation of extracts for chromatography and mass spectrometry

Technical specifications

• Concentration method: Vacuum negative pressure with uniform water bath heating and oscillation
• Sample capacity: 16 or 36 positions
• Compatible vials: 65 mL / 260 mL glass tube with stem; 70 mL / 320 mL glass tube
• Water bath temperature range: Room temperature to 80°C
• Oscillation speed: 0–300 rpm
• Vacuum pump speed: 20–30 L/min
• Vacuum pump noise: <60 dB
• Software/interface: 7-inch built-in touch screen
• Dimensions: 67 cm × 44 cm × 34 cm
• Weight: 57 kg
• Power supply: 200–240 V, 50/60 Hz
• Power consumption: 2000 W
• Storage temperature: 0–40°C
• Storage humidity: 20–85%
• Operating temperature: 10–40°C
• Operating humidity: 20–80%

Installation & environmental requirements

• Fume hood/ventilation: Required
• Recommended power circuit: dedicated line matching 200–240 V, 50/60 Hz
• Ensure stable bench space matching dimensions and weight
• Follow laboratory safety and chemical handling procedures during operation
