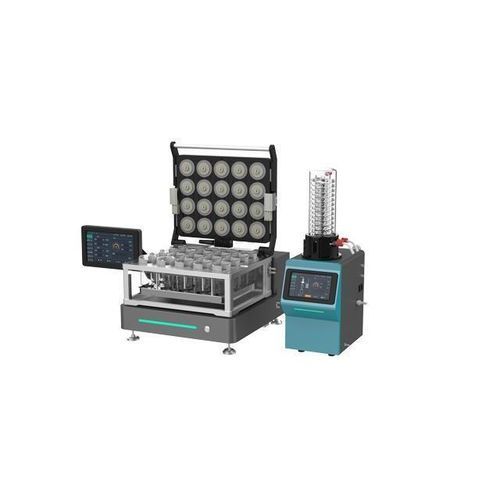

Laboratory evaporator MPE Pro

for samplessolventvacuum

Product overview
The MPE Pro Automated Vacuum Evaporation System delivers controlled, high-throughput solvent evaporation for laboratory workflows. The MPE Pro series integrates additional automation modules for simplified operation: place sample tubes, close the cover plate and start the cycle. The system provides precise vacuum gradient control to reduce analyte loss from bumping and supports automatic sealing and endpoint detection. When combined with the MPE ASR condensation recovery module, it enables extended automation of sample concentration and solvent recovery.

Key features

• Automated operation with simplified cover plate handling
• Multiple model options: MPE Pro 12 / MPE Pro 20 (IR or Standard) / MPE Pro 48
• High sample capacity and compatibility with 65–800 mL glass tubes (model-dependent)
• Precise vacuum control and adjustable oscillation (0–300 rpm)
• Choice of condensation modules and automatic endpoint detection (IR option)

Technical specifications

• Models: MPE Pro 20 IR, MPE Pro 20 Standard, MPE Pro 48 Standard, MPE Pro 12 Standard, MPE Pro 20 Separate
• Sample capacity: 12 / 20 / 48 (model dependent)
• Compatible sample vials: 65, 70, 250, 320, 380, 800 mL glass tubes (model dependent)
• Water bath temperature: up to 60–80°C (model dependent)
• Oscillation rate: 0–300 rpm
• Vacuum pump flow: 20–30 L/min; noise <60 dB
• Standard interface: 10-inch built-in touch screen
• Dimensions: 75 cm × 54 cm × 40 cm; Weight: 80 kg
• Power: 2000 W; Supply: 200–240 V, 50/60 Hz
• Fume hood/ventilation: required
• Storage: 0 to 40°C (20–85% RH); Operating: 10 to 30°C (20–80% RH)

Applications

• Concentration and solvent removal in analytical and preparative laboratories
• Sample preparation in pharmaceutical, environmental and research labs
• Integration into automated workflows with condensation recovery for solvent recycling
