Manual distillation system MPE ASR

automaticautomatedcomputer-controlled

Product description

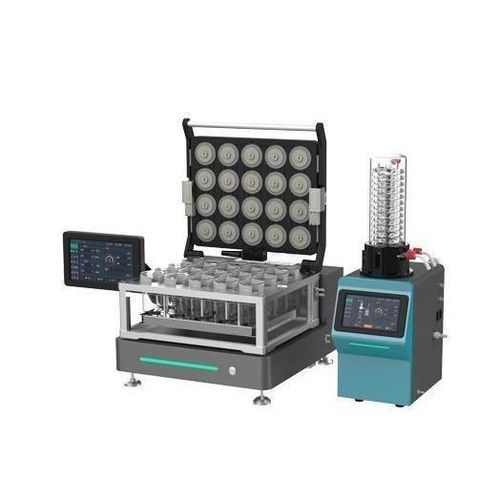

MPE ASR, manufactured by RayKol Group, is a condensation receiving module designed for precise pressure control during vacuum evaporation. It provides multi-mode pressure-decrease options (manual, programmed, frequency-conversion) and supports 20-step gradient control with an optional frequency-conversion pump for smooth pressure adjustments. Designed for mixed solvents with differing boiling points, its automatic condensing waste discharge system removes low-boiling solvents first to prevent interference with subsequent samples. Suitable for laboratory and industrial solvent recovery processes.

Features

• Multi-mode pressure control: manual, programmed, frequency-conversion
• 20-step gradient pressure control
• Automatic condensing waste discharge system removing low-boiling solvents first
• Built-in 7-inch touch screen for software control

Technical specifications

• Vacuum pump rate: 20 to 30 L/min
• Pressure control precision: 1 to 10 mbar
• Pressure setting precision: 1 mbar
• Gradient pressure control: Maximum 20 steps
• Noise level: less than 60 dB
• Control interface: 7-inch touch screen
• Dimensions: 210 mm x 340 mm x 660 mm
• Pressure-decrease modes: manual, programmed, frequency-conversion
• Optional frequency-conversion (variable-frequency) pump
