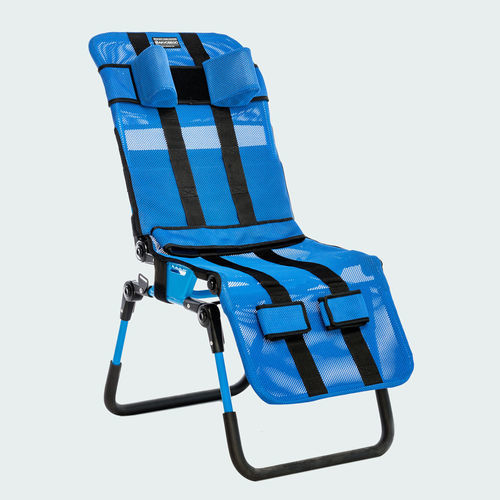

Bath seat with footrest AKVOSEGO™

with backrestpediatricergonomic

Description
Bath chair AKVOSEGO™ is designed to maintain personal hygiene with appropriate stabilization. It is intended for children and users with limited mobility due to neurological or orthopedic conditions.

SPECIAL FEATURES

• Class I medical device (CE)
• Innovative adjustable construction
• Recommended by specialists
• Chemical-free materials
• Waterproof upholstery
• Latex-free
• Full range of adjustments

INDICATIONS FOR USE

• Cerebral palsy (CP)
• Paralysis or paresis
• Poliomyelitis (Heine–Medin disease)
• Limb injuries or amputation
• Limb deformities
• Joint arthritis and injuries

WHAT IS THE CHILDREN'S BATH CHAIR AKVOSEGO™?

• AKVOSEGO™ provides stabilized seating during bathing for children with neurological or orthopedic impairments.
• When additional stabilization is required, the chair secures the user and reduces the risk of slips or falls.
• The device facilitates safe and ergonomic handling during bathing, maintaining a stable and comfortable position.

CONSTRUCTION AND MATERIALS

• Lightweight aluminium frame resistant to water damage.
• Polyamide mesh upholstery: waterproof, sweat-resistant and adjustable tension.
• Tubes filled with PU foam to prevent water ingress; no leakage after removal from the bath.
• Foam covers on tubes to prevent movement and protect the bathtub surface.

ADJUSTABILITY AND SUPPORT

• Fully adaptable: adjustable footrest, seat, backrest and headrest allow sitting or reclining positions.
• Trunk and lower-limb support via belt system to maintain correct body alignment.
• Width-adjustable head support limits involuntary movement and reduces the risk of water aspiration.

OPTIONAL ACCESSORY — PELVIC / HIP-THIGH BELT

• Improves pelvic stability
• Made of durable, waterproof fabric
• Adjustable to individual patient needs

OTHER FEATURES

• Folding design for compact storage.
• Frame and tubes are neutral to water damage; robust coupling regulators enable a wide adjustment range.

AVAILABLE COLOURS

• Blue (rozmiar 0)
• Green (rozmiar 1)
• Orange (rozmiar 2)
• Blue (rozmiar 3)

SIZE TABLE
Symbol | Measurement | Unit | Size 0 | Size 1 | Size 2 | Size 3
A | Product width | [cm] | 37 | 42 | 45 | 50
B | Seat depth | [cm] | 23 – 28 | 28 – 33 | 32 – 40 | 38 – 46
C | Headrest height | [cm] | 16 | 16 | 19 | 23
C1 | Backrest height | [cm] | 31 | 40 | 44 | 50
C2 | Lower leg length | [cm] | 26 | 31 | 36 | 41
C3 | Seat height (from the floor) | [cm] | 11 – 44 | 11 – 44 | 13 – 49 | 15 – 54
Back/seat angle | [°] | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180
Additional angle | [°] | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180
Other angle value | [°] | 205 | 210 | 210 | 205
Max. user weight | [kg] | 25 | 30 | 50 | 75
Indicative user height* | [cm] | 80 – 100 | 100 – 120 | 120 – 140 | 130 – 170
* The indicative user height should not be the sole criterion for selecting the product size.

WEIGHT AND DIMENSIONS OF THE DEVICE
Measurement | Unit | Size 0 | Size 1 | Size 2 | Size 3
Width | [cm] | 42 | 42 | 45 | 50
Width after folding | [cm] | 42 | 42 | 45 | 50
Length | [cm] | 70 | 75 | 91 | 97
Length after folding | [cm] | 64 | 67 | 76 | 88
Height | [cm] | 80 | 85 | 96 | 113
Height after folding | [cm] | 28 | 28 | 29 | 31
Weight | [kg] | 4 | 4.5 | 5 | 6.5

DOWNLOADS (titles only)

• Declaration of Conformity EC
• Manual (English)
• Manual (Spanish)

TECHNICAL SPECIFICATIONS

• Code: AKVOSEGO
• Trade name: BATH CHAIR AKVOSEGO
• Model: AKVOSEGO™
• Intended for: children with neurological and orthopedic conditions; users with limited mobility (CP, paralysis/paresis, poliomyelitis, limb injuries/amputation, limb deformities, joint arthritis/injuries)
• Frame: lightweight aluminium, neutral to water damage
• Upholstery: waterproof polyamide mesh; adjustable tension
• Tubes filled with PU foam to prevent water ingress and leakage after bath
• Supports: trunk support, leg support, adjustable head support (width adjustable), optional pelvic/hip-thigh belt
• Adjustment range: back/seat angles 90–180°; seat height ranges depend on size (see size table)
• Max user weight by size: 25 kg (Size 0), 30 kg (Size 1), 50 kg (Size 2), 75 kg (Size 3)
• Device and folded dimensions vary by size (see tables)
• CE: Class I medical device (Regulation (EU) 2017/745)
