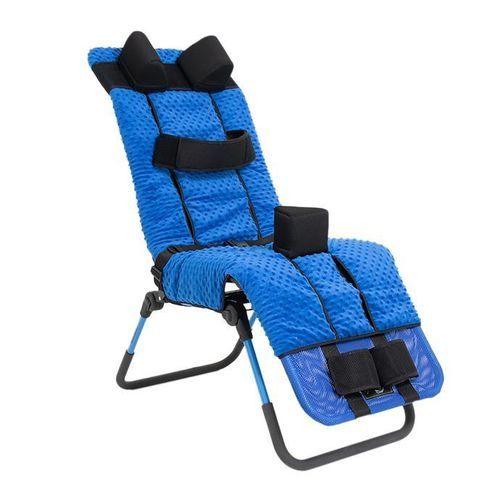

Pediatric positioning system REHASEGO™

Short description
REHASEGO™ positioning chair designed to provide stable support and correct posture for children and adolescents with limited mobility. Intended for therapeutic use and daily care; reduces risk of pressure injuries and facilitates hygiene.

SPECIAL FEATURES

• Water-permeable mesh support upholstery combined with a MINKY™ cover for user comfort and easy cleaning
• Lightweight aluminium frame filled with polyurethane foam to limit water ingress and ensure corrosion resistance
• Compact foldable design for space-saving storage and transport
• Tool-free adjustments: seat depth, head support width and angle, trunk support height, leg support and pelvic stabilization
• Stabilization system and pelvic belt to secure posture and reduce risk of slipping

INDICATIONS FOR USE
Intended for disabled children and adolescents requiring positioning support during therapy and care. Typical indications include:

• Cerebral palsy (CP)
• Muscular dystrophy
• Spina bifida
• Other neurological conditions with paresis or paralysis of limbs and/or trunk

CONTRAINDICATIONS FOR USE

• Incorrect positioning may cause joint deformation; the device must be fitted by trained personnel
• Observe maximum user weight per size (see sizes table and user manual)

Product construction and comfort
REHASEGO™ features a double upholstery system: a perforated mesh support layer that allows air circulation and a MINKY™ outer cover for comfort. The mesh support provides a micro-massage effect that can help circulation and pressure redistribution. The support upholstery is water-permeable to facilitate hygiene procedures.

DRY FLOOR TECH™
The frame is made of lightweight aluminium filled with polyurethane foam to prevent water accumulation inside the frame in wet environments. Foam covers at contact points improve traction and protect surfaces from scratches.

Adjustments and functionality
An articulated frame with a wide adjustment range allows precise adaptation to the user’s body. Adjustable elements: variable seat depth, adjustable head support (width and angle), adjustable trunk support height, leg support, footrest angle and backrest tilt. The chair folds for transport and storage.

STANDARD EQUIPMENT

• Adjustable head support (width and stabilization)
• Adjustable trunk support (mounting at different back heights)
• Leg support
• Water-permeable support upholstery (polyamide mesh, adjustable tension)
• Adjustable aluminium frame with durable powder coating and foam filling
• Pelvic belt for stabilization
• MINKY™ cover
• Thigh abduction block

COLORS

• Blue
• Green
• Orange

AVAILABLE SIZES (table)
Symbol | Measurement | Unit | Size 0 | Size 1 | Size 2 | Size 3
A | Product width | cm | 37 | 42 | 45 | 50
B | Seat depth | cm | 23–28 | 28–33 | 32–40 | 38–46
C | Headrest height | cm | 16 | 16 | 19 | 23
C1 | Backrest height | cm | 31 | 40 | 44 | 50
C2 | Lower leg length | cm | 26 | 31 | 36 | 41
C3 | Seat height (from floor) | cm | 11–44 | 11–44 | 13–49 | 15–54
Footrest angle (relative to seat) | ° | 90–180 | 90–180 | 90–180 | 90–180
Backrest tilt angle (relative to seat) | ° | 90–180 | 90–180 | 90–180 | 90–180
Headrest angle (relative to backrest) | ° | 205 | 205 | 205 | 205
Max. user weight | kg | 25 | 30 | 50 | 75
Indicative user height* | cm | <100 | 100–120 | 120–140 | 130–170

WEIGHT AND DIMENSIONS (table)
Measurement | Unit | Size 0 | Size 1 | Size 2 | Size 3
Width | cm | 42 | 42 | 45 | 50
Width after folding | cm | 42 | 42 | 45 | 50
Length | cm | 70 | 75 | 91 | 97
Length after folding | cm | 64 | 67 | 76 | 88
Height | cm | 80 | 85 | 96 | 113
Height after folding | cm | 28 | 28 | 32 | 40
Weight | kg | 4 | 4.5 | 5 | 6

Downloads
User guide and EC Declaration available as product documentation.

Characteristics / technical specifications

• Trade name: Positioning chair
• Model: REHASEGO™
• Frame: Lightweight aluminium filled with polyurethane foam, powder-coated
• Upholstery: Double system – perforated mesh support layer (water-permeable, micro-massage effect) + MINKY™ cover
• Adjustments: Seat depth, head support width and angle, trunk support height, footrest angle, backrest tilt
• Stabilization: Pelvic belt and trunk stabilizers included
• Foldable: Yes
• DRY FLOOR TECH™: frame design prevents water accumulation; foam covers protect floor
• Available sizes: 0, 1, 2, 3
• Max user weight by size: Size 0 = 25 kg; Size 1 = 30 kg; Size 2 = 50 kg; Size 3 = 75 kg
• Indicative user heights by size: <100 cm (Size 0); 100–120 cm (Size 1); 120–140 cm (Size 2); 130–170 cm (Size 3)
• Weight by size: 4 kg (Size 0), 4.5 kg (Size 1), 5 kg (Size 2), 6 kg (Size 3)
• Footrest and backrest adjustable between 90° and 180°; headrest angle 205° (relative to backrest)
• Medical device: Class I (Regulation (EU) 2017/745)
