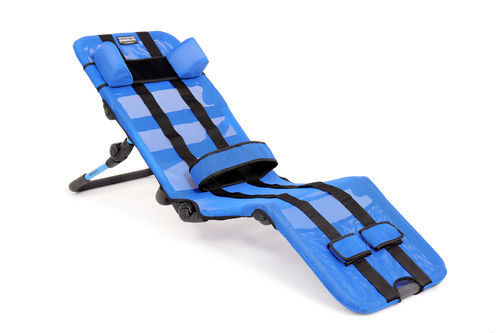

Bath seat with backrest AKVOLITO™

Short description
Bath deckchair AKVOLITO™ was designed for keeping the hygiene with proper stabilization. It is created for disabled children and those who have limited mobility.

SPECIAL FEATURES

• I CLASS MEDICAL PRODUCT
• INNOVATIVE
• RECOMMENDED BY SPECIALISTS
• CHEMICAL FREE
• WATERPROOF
• LATEX-FREE
• FULL RANGE OF ADJUSTMENT

PURPOSE OF USE

• cerebral palsy (CP)
• paralysis or paresis
• poliomyelitis (Heine-Medin disease)
• limb injuries or limb amputation
• limb deformities
• joint arthritis and injuries

WHAT IS CHILDREN BATH DECKCHAIR AKVOLITO™?
Bath deckchair AKVOLITO™ was designed for keeping the proper hygiene of children suffering from neurological and orthopedic conditions. The deckchair stabilizes the child during bath time and reduces the risk of injury. Stable and comfortable child position in the deckchair makes day-to-day routines and family life easier.

CONSTRUCTION AND MAIN FEATURES
Lightweight solid aluminium frame protected against water. Frame is equipped with foam covers protecting bathtub surfaces from scratching. Unique construction allows adjusting the tilt angle of four areas: footrest, seat, backrest and headrest. Seat height is adjustable.

SUPPORTS AND ADJUSTMENTS

• Head support: width adjustment keeps the child’s head in proper position and helps prevent involuntary movement and risk of choking on water.
• Trunk support: provides correct body positioning, stabilizes trunk muscles; can be mounted at any height of the backrest or seat and fastened with Velcro tapes.
• Lower limb supports: keep proper leg position and prevent involuntary movement and reflexes; mountable at any footrest height and fastened with Velcro tapes.
• Frame features: solid aluminium, neutral to water damage, foam covers, wide range of adjustments via solid coupling regulators.
• Foldable: innovative construction permits required position adjustments and reduces size after folding.

SIZE TABLES
Symbol | Measurement | Unit | Size Baby | Size 0 | Size 1 | Size 2 mini | Size 2 | Size 3 | Size 4
A | Product width | [cm] | 35 | 35 | 40 | 35 | 40 | 45 | 50
A1 | usable width | [cm] | 26 | 26 | 31 | 26 | 31 | 36 | 41
B | Seat depth | [cm] | – | 22 | 25 | 28 | 28 | 33 | 35
C | Headrest height | [cm] | – | 19 | 22 | 26 | 26 | 30 | 33
C1 | Backrest height | [cm] | – | 28 | 33 | 37 | 37 | 43 | 50
C2 | Lower leg length | [cm] | – | 24 | 28 | 31 | 31 | 36 | 41
B+C2 | Seat depth with lower leg length | [cm] | 41 | 46 | 53 | 59 | 59 | 69 | 79
C+C1 | Backrest height with backrest height | [cm] | 41 | 47 | 55 | 63 | 63 | 73 | 83
Z | Footers tilt angle (relatively to the seat) | [°] | – | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180
Z1 | Backrest tilt angle (relatively to the seat) | [°] | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180 | 90 – 180
Z2 | Headrest tilt angle (relatively to the backrest) | [°] | – | 144 – 234 | 144 – 234 | 144 – 234 | 144 – 234 | 144 – 234 | 144 – 234
| Max. user weight | [kg] | 25 | 30 | 50 | 50 | 60 | 70 | 80
| Indicative user height* | [cm] | 55 – 75 | < 80 | < 90 | < 105 | < 105 | < 120 | < 160

WEIGHT AND DIMENSIONS OF THE DEVICE
Measurement | Unit | Size Baby | Size 0 | Size 1 | Size 2 mini | Size 2 | Size 3 | Size 4
Width | [cm] | 35 | 35 | 40 | 35 | 40 | 45 | 50
Width after folding | [cm] | 35 | 35 | 40 | 35 | 40 | 45 | 50
Length | [cm] | 74 – 82 | 68 – 97 | 76 – 113 | 87 – 124 | 87 – 124 | 97 – 145 | 107 – 164
Length after folding | [cm] | 41 | 50 | 60 | 67 | 67 | 76 | 86
Height | [cm] | 18 – 51 | 24 – 57 | 24 – 63 | 26 – 68 | 26 – 68 | 27 – 75 | 27 – 81
Height after folding | [cm] | 30 | 23 | 23 | 23 | 23 | 23 | 23
Weight | [kg] | 2,2 | 3 | 3,5 | 3,4 | 3,8 | 4,4 | 5

AVAILABLE COLOURS
Green (Size 1), Orange (Size 2), Red (Size 2 mini), Blue (Size 3), Black (Size 4)

Downloads
Declaration of Conformity EC (PDF) and User Manual (PDF) are provided for the product.
