Positioning headrest 10-230-(X)dbl

for operating tablesanti-staticstainless steel

Product description

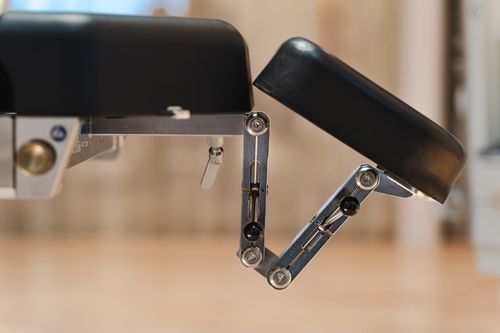

The Head support double-link is a double-pivot head support designed for ENT surgery, providing precise positioning and stable fixation. It features a bowl-shaped cushion that cradles the patient’s head and a unique single-lever locking system that secures both pivots simultaneously. The device is compatible with a wide range of operating tables via adapters.

Key features and variants:

• Unique single-lever locking system securing both pivots for quick, secure adjustment.
• Bowl-shaped cushion to cradle and stabilise the patient’s head during procedures.
• Full adjustability above and below horizontal for flexible positioning.
• Compatibility: holder fits a wide range of operating tables; adapters enable fitting to nearly all market models.
• Available versions / mounting options:
  • 10-230-Mdbl — 2-point mount CC 171.5 mm
  • 10-230-Fdbl — 2-point mount CC 106 mm, short posts
  • 10-230-Tdbl — 1 L-profiled, square pole 20 x 20 mm
  • 10-230-Mdbl-NO — 1 Straight profiled, square pole 20 x 20 mm

Technical specifications

• Length: 580 mm
• Width: 290 mm
• Height (adjustable): 95–390 mm
• Weight: 5.5 kg
• SWL (Safe Working Load): 15 kg
• Materials: stainless steel; aluminium; antistatic fabric; foam; slow-recovery foam

Compatibility & mounting

• Adapter system allows installation on most operating table brands; verify table interface specifications to confirm compatibility.
