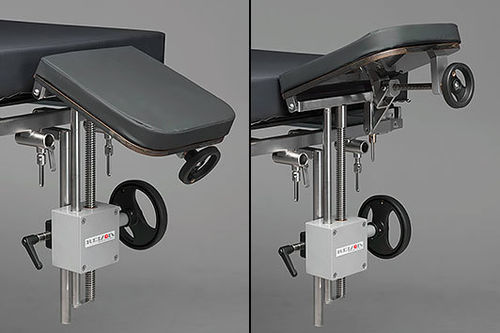

Bronchoscopy headrest 10-330

positioningheight-adjustablestainless steel

Overview
Head Support Bronchoscopy is a medical head support designed for examinations and treatments involving the bronchoscope and for procedures related to the esophagus, cardia and stomach. It provides mechanical adjustments to achieve and maintain optimal patient positioning during endoscopic and related interventions.

Adjustments

• Height adjustment: raised or lowered using a wheel located on the right side of the gearbox
• Head plate angulation: adjustable upwards and downwards using a wheel at the rear of the plate
• Lateral (sideways) angling for procedural accommodation
• Max angle downwards: 50°
• Max angle upwards: 20°

Technical specifications

• Part no: 10-330
• Length: 510 mm
• Width: 220 mm
• Height: 415 mm
• Weight: 5.5 kg
• SWL (Safe Working Load): 15 kg
• Material: Stainless steel, Aluminum, Antistatic fabric, Foam (slow-recovery)
