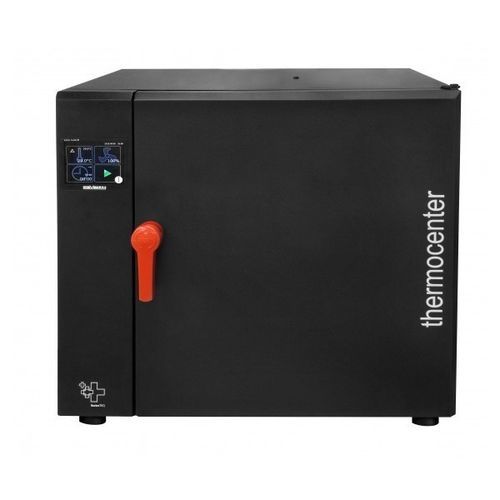

Hot air incubator drying oven Thermocenter

forced convectiondrylaboratory

Overview
The SalvisLab Thermocenter family provides precise temperature control and short heating times for heating and drying applications. Units feature flexible interior configuration, SalvisTEQ controller with touch display and standard communication ports for integration into laboratory and production environments.

Oven series

• Oven TC40+, TC80+, TC160, TC240, TC400

Key features

• Improved energy efficiency via SalvisTEQ controller
• Programmable independent control
• Real-time clock and process graph capability
• Safety class 3.3
• USB and RJ45 interfaces (LAN optional)
• Touch screen display
• Standard entry port 6 mm (options: 20 mm, 40 mm)
• Ambient temperature probe included

Variants and technical data
SalvisLab Thermocenter TC40+

• External dimensions (WxHxD) mm: 650 x 510 x 510
• Internal dimensions (WxHxD) mm: 385 x 370 x 305
• Internal volume (L): 40
• Shelves (standard/max): 2 / 5
• Temperature range: >5 °C above ambient to 275 °C
• Temperature variation at 50/150 °C (± °C): 0.6 / 1.4
• Temperature fluctuation at 100 °C (± °C): 0.2
• Heating time 70/150 °C (min): 7 / 20
• Power (W): 1000
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

SalvisLab Thermocenter TC80+

• External dimensions (WxHxD) mm: 750 x 540 x 600
• Internal dimensions (WxHxD) mm: 485 x 400 x 395
• Internal volume (L): 80
• Shelves (standard/max): 2 / 5
• Temperature range: >5 °C above ambient to 275 °C
• Temperature variation at 50/150 °C (± °C): 0.6 / 1.4
• Temperature fluctuation at 100 °C (± °C): 0.2
• Heating time 70/150 °C (min): 8 / 20
• Power (W): 1000
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

SalvisLab Thermocenter TC160

• External dimensions (WxHxD) mm: 800 x 720 x 680
• Internal dimensions (WxHxD) mm: 535 x 580 x 475
• Internal volume (L): 160
• Shelves (standard/max): 2 / 8
• Temperature range: >5 °C above ambient to 275 °C
• Temperature variation at 50/150 °C (± °C): 0.8 / 1.8
• Temperature fluctuation at 100 °C (± °C): 0.2
• Heating time 70/150 °C (min): 12 / 30
• Power (W): 1600
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

SalvisLab Thermocenter TC240

• External dimensions (WxHxD) mm: 890 x 820 x 720
• Internal dimensions (WxHxD) mm: 625 x 680 x 515
• Internal volume (L): 240
• Shelves (standard/max): 2 / 8
• Temperature range: >5 °C above ambient to 275 °C
• Temperature variation at 50/150 °C (± °C): 0.8 / 2.1
• Temperature fluctuation at 100 °C (± °C): 0.2
• Heating time 70/150 °C (min): 16 / 30
• Power (W): 1800
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

SalvisLab Thermocenter TC400

• External dimensions (WxHxD) mm: 990 x 920 x 900
• Internal dimensions (WxHxD) mm: 725 x 780 x 695
• Internal volume (L): 400
• Shelves (standard/max): 2 / 10
• Temperature range: >5 °C above ambient to 275 °C
• Temperature variation at 50/150 °C (± °C): 1.0 / 2.5
• Temperature fluctuation at 100 °C (± °C): 0.2
• Heating time 70/150 °C (min): 20 / 40
• Power (W): 2000
• SalvisTEQ controller: Yes
• Display: Touch
• Ports: USB, RJ45

Options

• Product temperature controller
• Program and user packages
• Process graph
• Redundant PT-100 probe
• Factory temperature mapping
• LAN interface
• Additional memory
• Additional USB or RJ45 port
• Entry port 20 mm
• Entry port 40 mm
• IQ/OQ documentation, 3 hard copies
• Freely assignable analog outputs
• Programmable power socket
• + point calibration
• Potential-free contact

Accessories

• Wire shelves (standard)
• Fresh air filter
• Product temperature probe
• Wall bracket

Technical specifications

• Models: TC40+, TC80+, TC160, TC240, TC400
• Temperature range: >5 °C above ambient up to 275 °C
• SalvisTEQ controller with touch display (energy-efficient control)
• Interfaces: USB and RJ45; LAN optional
• Standard entry port: 6 mm (options: 20 mm, 40 mm)
• Ambient temperature probe included
• Safety class: 3.3
• Programmable functions, real-time clock and process graph capability
• Heating power by variant: 1000 W (TC40+/TC80+), 1600 W (TC160), 1800 W (TC240), 2000 W (TC400)
